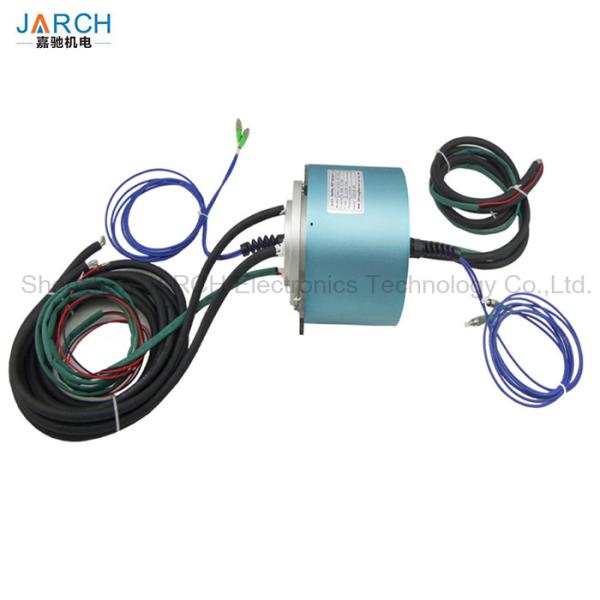

2 Channels Rotary Slip Ring Fiber Optical Joint For Encoder Servo Motor Signal Line

JARCH 2 channels fiber optical rotary joint forj Electro Optical Slip Ring for encoder servo motor signal line

JSR-FE080-XE-2FS The optical electronic hybrid rotary combination slip ring is composed of a conductive slip ring which can transmit power supply, control signal power supply, instrument and micro-electric signal required by computer automatic control and a smooth ring which can transmit multi-mode single-mode optical fiber signal. It can solve the problem of optical signal and electric signal transmission with 360 degree rotation at the same time.

The Electro Optical Slip Ring suitable for applications that require unlimited, continuous or intermittent rotation, but also need to transfer large-capacity data and signals from fixed position to rotary position. It can improve mechanical performance, simplify system operation, and avoid damage to optical fibers caused by the rotation of active joints. It can be used in conjunction with the traditional electronic confluence ring to form a hybrid optoelectronic confluence ring to transmit power and high-speed data. Various solutions can be customized to meet the needs of the program.

Specification for FORJ
Wavelength range	650-1650 nm
Insertion loss	<2dB (typical: <0.5 dB)
Return loss	>40dB (typical:45 dB,2323 C), >50 dB (MJXA)
Maximum speed.	2000 rpm
Pressure compensation	1,000 psi (model RPC for higher pressure)
Pulling strength	10 N (900 um buffer)
Estimated life cycle	200-400 million revolutions
Optical power handlin	23 dBm
Working temperature	-40 to 80 C
Storage temperature	-50 to 85 C
Start up torque	<0.1 Nm
Package style	Pigtail or receptacles (FC, FC/APC, or ST)
Fiber types	Single or multimode w/3 mm jacke
Connector types	FC, SC, ST, SMA, or LC (and APC finishes)
Housing material	Stainless steel
Weight	~50 g
IP rating	IP 68 for all models

2D Drawing of Electro Optical Slip Ring

The Electro Optical Slip Ring Features

***Low Torque
***Compact structure
***Diversified shape to support more installation requirements
***Supporting signal, power supply and mixed transmission of precious metal contact to ensure long service life
***Gold-gold contact, very low contact resistance
***Compatible Data Bus Protocol
***Smooth operation

Applications of Electro Optical Slip Ring

1. Robots
2. Medical system
3. Video surveillance system
4. Safeguarding National or International Safety Systems Submarine Operating Systems 2. Material Transportation Systems
5. Turrets on Vehicles
6. Remote Control System
7. Radar antenna
8. Transmission and Control of High-Speed Video, Digital and Analog Signals in Optical Fiber Sensor Turntable (Rate Table)
