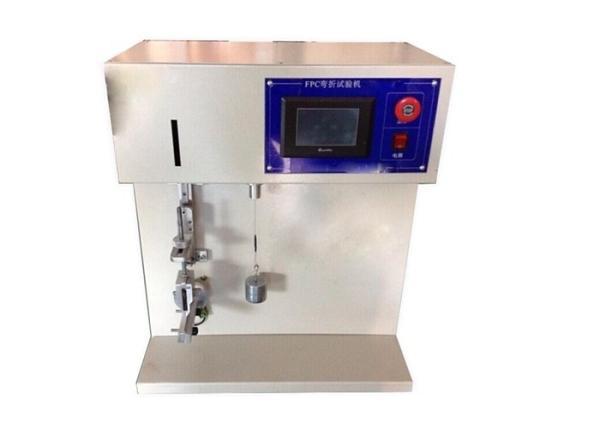

FPC bending resistance testing machine JD-3002

product description:

FPC bending resistance testing machine is mainly used for flexible circuit boards (commonly known as software circuit boards) for flexural testing, such as mobile phone, PDA, electronic dictionary, laptop computer and other electronic products FPC soft board flexure resistance, flex life Test test. This machine complies with the test standards such as JIS C6471.

Product parameters:

1. Test station: 1

2, test angle: 0 ~ 180 degrees (text number setting)

3, test speed: 10~60 times / minute (text number setting)

4, test itinerary: 20~100mm (manually adjustable, can be customized according to requirements)

5, the maximum width and opening width of the test fixture: 60mm, 20mm (can be customized according to requirements)

6, test fixture: the lower end R angle active fixture and the upper end of the movable fixture

7, test R angle clamp diameter: 1.0mm (can be customized)

8, the number of trials counter: 0 ~ 999999 times (text number can be preset, the number of times and product break automatically stop)

9. Test function: The text sets the angle, the number of times, the speed, etc. It has a unique conduction function, disconnects the automatic

stop counting function, and automatically finds the origin and other functions.

10, machine size (L × W × H): 450 × 380 × 700mm

11, machine weight: 45kg

12, working power: AC220V, 50HZ
