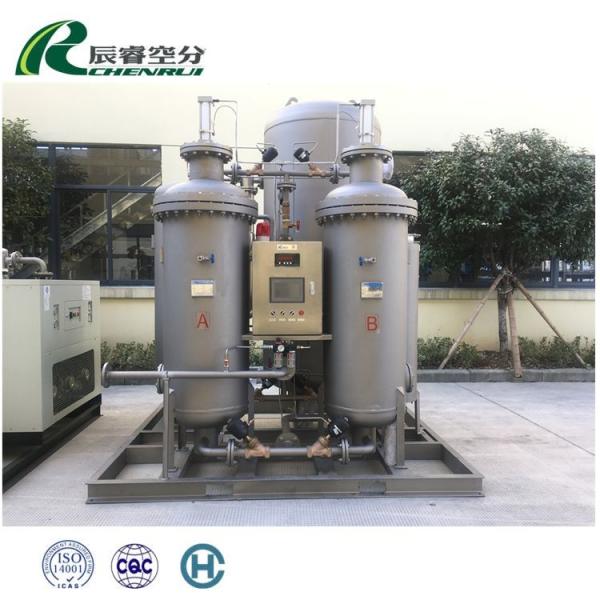

Chenrui Oxygen Filling System Modular / Oxygen Cylinder Filling Machine Plant

2. Process Flow Brief Description

PSA oxygen generator is an automatic equipment which separate oxygen from air. According to the performance of molecular sieve, its adsorption when pressure risen and desorption when pressure loose. Molecular sieve’s surface and inner surface and interior are filled with micro pores. Nitrogen molecule has a faster diffusion rate of molecular sieve and oxygen molecules has a slower diffusion rate. Oxygen molecules are enriched in the end from the absorption tower.

Oxygen generator is constructed according to the principle of operation PSA (pressure swing adsorption) and it compressed by two absorption towers filled up with molecular sieve. The two absorption towers are crossed by compressed air (previously purified oil, water,dust, etc) . While one of the absorption tower produce oxygen, the other one release nitrogen gas to atmosphere. The process comes in cycle way. The generator is controlled by a PLC.

3. Oxygen Generator Applications

a. Ferrous metallurgy: For electric furnace steel making, blast furnace iron making, cupola oxygen blasting and heating and cutting, etc

b. Non-ferrous metal refinery: It can improve productivity and reduce energy cost, also protect our environment.

c. Water process: For oxygen aeration active mud process, reaeration of surface water, fish farming, industrial oxidation process, humid oxygenation.

d. Customized equipment with pressure high up to 100bar, 120bar, 150bar, 200bar and 250 bar are available for cylinder filling.

e. Medical-grade O2 gas can be obtained by equipping extra purifying device for removing bacteria, dust and odor.

f. Others: Chemical industry production, solid garbage burning, concrete production, glass manufacturing...etc.

4. Excellent features

(1) Low energy consumption, stable performance, good adaptability and high efficiency. Oxygen capacity and purity can be adjusted.

(2) Integrated skid-mounted design makes for easy installation, simple operation and small occupation area.

(3) Simple operation, intelligent control, can realize operating without workers.

(4) Patent cylinder clamping device extends the service life of zeolite molecular sieve.

(5) Adopt international famous brands pneumatic valves, to guarantee continuous system running.

(6) With fault detection function, alarm and processing function.s system running.

(7) Man-machine interface touch-screen, self-adaptive control for energy-saving, dew-point analyzer and remote DCS, etc are optional.

5. RFQ

1. Are you manufacturer or Trade Company?
We are the manufacturer of Oxygen Generator, founded in 2005
2. What's the order oxygen generator process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Contract confirmation---provide correct contract details.
d. Payment terms
e. Production
f. Shipping
g. Installation and commissioning

3. What terms of payment you use?
T/T, L/C etc.
4. How to get a prompt quotation of Oxygen Generator?
When you send the inquiry to us, pls kindly send it with below technical information.
1) O2 flow rate: _____Nm3/hr( or How many cylinders do you want to fill per day(24hours))
2) O2 purity: _____%
3) O2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application:

6) Project Location:

    Hangzhou Chenrui Air Separator Installation Manufacture CO., Ltd located in the city of Fuyang, Hangzhou. It’s one of the most intelligent air separator equipment manufactures with low energy consumption and high efficiency in China. We focus on providing the most advanced, reasonable and energy-saving air separation equipment in this industry.

    To comply with the market's demands, Chenrui always determines to pioneer, innovate and progress. It’s leading in many fields like Fully implements QES management system.,Achieved National Industrial Product Production License, State-level High-tech Enterprises Certification, 3 invention patents, 33 utility model patents and so on.

    Continuous technological innovation and upgrading, brings the value for the whole industry and society, which makes the air separator equipments more individual, intelligent and high-speed.

    Advanced production technology will surely achieve extraordinary products. Chenrui pioneered vacuum dust removal molecular sieve filling system, large shot blasting machine, automated welding process, efficient production process and excellent production environment let CHENRUI brand become the benchmark of air separation equipment manufacturing industry.

    In the era of information and globalization, Chenrui always insists on building long-term cooperation with design institutes and research institutes. Based on the actual needs, it can introduce all kinds of high-tech equipments and production technology.

As a supplier of air separator equipment system, we have 5 main products:

    1. PSA oxygen generator

    2. PSA nitrogen generator

    3. VPSA oxygen generator

    4. Cryogenic air separator plant

    5. Small liquid nitrogen generator

    Our generators are widely used in petrochemical industry, the electronics industry, textile industry, pharmaceutical industry, food and beverage industry, medical cosmetology industry, animal husbandry and so on.

Sincerely hope to promote, by joint our efforts, both trade and friendship to our mutual advantage.
