| Categories | Vehicle Reversing Systems |
|---|---|
| Brand Name: | Yoelbaer |
| Model Number: | YB90-1 |
| Certification: | ROHS, CE, FCC |
| Place of Origin: | Guangdong(China) |
| MOQ: | 30sets |
| Price: | $33-$38/set or negotiated |
| Payment Terms: | L/C, T/T, MoneyGram, Paypal, Trade AssuranceOrder, In Cash, Wechat, Alipay |
| Supply Ability: | 50000pcs/month |
| Delivery Time: | 1-7 working days after receiveing your payment |
| Packaging Details: | Box + Carton |
| Name: | vehicle reversing systems |
| Products: | 9 inch monitor and 2 cameras |
| SNR: | ＞48dB |
| Video: | V1 V2 and support reversing priority |
| Screen: | 9 Inch 2 Channels TFT LCD Monitor |
| Operation temperature: | -20 ~ 50 ℃ |

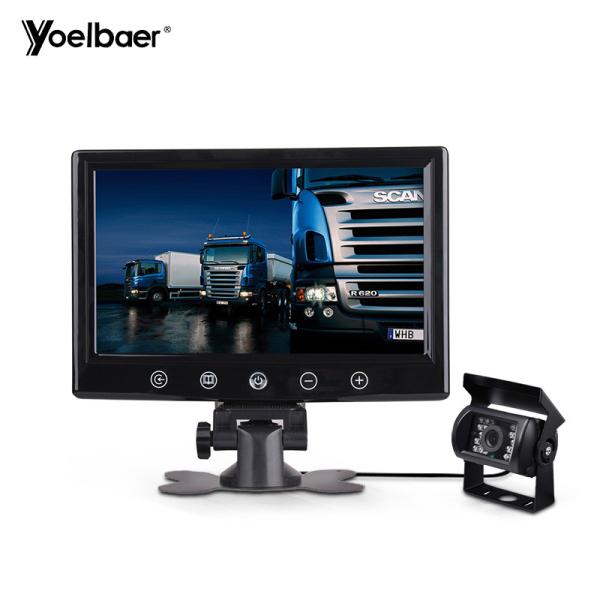

9" Security Wired Backup Camera System 2 Channels TFT LCD Monitor OSD Control
Features:
- 9" digital color TFT LCD screen
- From the perspective of range - 50 degrees, the next 70 degrees, 70 degrees left -, right - 70 degrees
- Automatic modulation recognition system PAL / NTSC
- OSD control the brightness, contrast, color, volume, mode, flip, languages(English, German, French, Spanish, Portuguese, Italy, Holland, simplified Chinese)
- 2 way video input, AV or 4-pin connector optional
- Aluminum alloy material shell, plug-in design
- 18 IR LEDs camera supports night vision
| Bus/Truck Infrared/LED HD CCD Camera |
| 1. Chip:HD CCD |
| 2. TV system:NTSC60HZ/PAL50HZ |
| 3. Effective pixels:648 x 488 Pixels |
| 4. Sensing area:5.961 x 4.276mm |
| 5. Horizontal resolution: 520TVL |
| 6. Shutter speed: 1/60-20us |
| 7. Minimum illumination: 0.2Lux/ F1.8=1.2 (0 Lux with Led) |
| 8. White balance: Auto |
| 9. Waterproof: IP67 |
| 10. Video output: 1.0Vp-p, 75ohm |
| 11. View Angle : 120 Degree |
| 12. Power supply:DC12-24V |
| 13. Operating Temperature: -20°C~ 70°C, RH95% Max. |
| 14. Storage Temperature: -30°C ~ 85°C, RH95% Max. |
| 15. Horizontal synchronization frequency:15625KHZ |
| 16. SNR:＞48dB |
| 17. Power: 7W |
| 18. Size: 73*40*25MM |
| 19. Default with Parking line for Rearview.Front view accept |
| Screen: 9 Inch TFT LCD Monitor |
| 1. Size: 230*153*25MM |
| 2. Voltage: 9-35V |
| 3. Contrast: 500:1 |
| 4. Brightness: 400cd/m2 |
| 5. Physical resolution: 1024*600 |
| 6. Standard: PAL/NTSC |
| 7. Power supply: DC port |
| 8. Ratio: 16:9/4:3 |
| 9. Power: About 7W |
| 10. Control:OSD |
| 11. Operation temperature: -20 ~ 50 ℃ |
| 12. Storage temperature: -30 ~ 70 ℃ |
| 13. 4 Video signal input: V1 V2 , support reversing priority |
| 9 Inch Monitor+1Camera |
| Car monitor*1 |
| IR/LED camera*1 |
| 5M aviation extension cable*1 |
|
