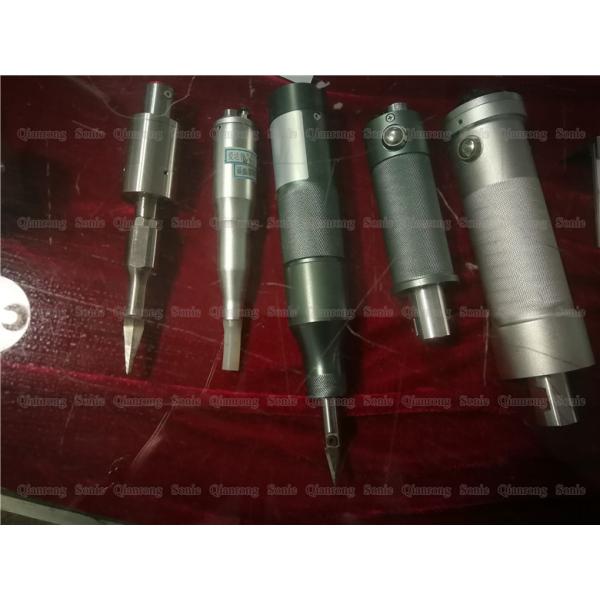

30Khz Handheld Ultrasonic Knife Ultrasonic Cutting Machine Replacement Traditional Cutter

High Consistency of the Cutting Surface by 30Khz Handheld Ultrasonic Knife Replacement Traditional Cutter

Description:

The principle of the ultrasonic cutter is to convert the 50/60hz current into 20khz, 30khz or 40khz by ultrasonic generator. The converted high frequency electrical energy is again converted by the transducer into a mechanical vibration of the same frequency and then the mechanical vibration is transmitted to the cutting blade through a set of amplitude modulator devices that can change the amplitude. The ultrasonic cutting blade vibrates along its length with an amplitude of 10-70 microns and repeats 20,000 times per second (20khz) (the vibration of the blade is microscopic, which is generally difficult to see by the naked eye). The cutting blade then transfers the received vibrational energy to the cutting face of the workpiece to be cut, in which the vibrational energy is cut by activating the molecular energy of the material and opening the molecular chain.

Specifications:

Advantages:

1. High stability: The ultrasonic generator generates electromagnetic vibration when it is working, and converts it into mechanical oscillation and transmits it to the cutting knives and cutting materials. The mechanical cutting is performed, so no sharp cutting edge is needed, and the blade wear is small, and at the same time The cutter head can be replaced by itself.

2. Safety and environmental protection: When the ultrasonic knife is cut, the temperature of the cutter head is lower than 50 degrees Celsius, and no smoke and odor will be generated, which eliminates the danger of injury and fire during cutting.

3. Cutting neatly: Since the ultrasonic wave is cut by high-frequency vibration, the material will not adhere to the surface of the blade, only a small pressure is required for cutting, and the fragile and soft materials are not deformed and worn, and the fabric is cut and automatically sealed. Will not cause chipping.

4. Simple operation: the cutting knife is connected to the ultrasonic generator, the generator is connected to 220V mains, and the switch can be cut to support hand-held and machine-mounted cutting.

High Consistency of the Cutting Surface by 30Khz Handheld Ultrasonic Knife Replacement Traditional Cutter
