| Categories | Wire Twisting Machine |
|---|---|
| Brand Name: | Fuchuan |
| Model Number: | FC-250B |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | negotiable |
| Supply Ability: | 500 sets per month |
| Delivery Time: | 45days |
| Packaging Details: | with container |
| Name: | Wire Twisting Machine |
| Take up bobbin: | diameter 300mm |
| Fit wire diameter: | 0.03mm-0.18mm |
| Controller: | PLC Touch Screen Controller |
| Direction of lay: | Free to left or right |
| Operation mode: | Touch screen operation |
| Company Info. |
| Kunshan Fuchuan Electrical and Mechanical Co.,ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

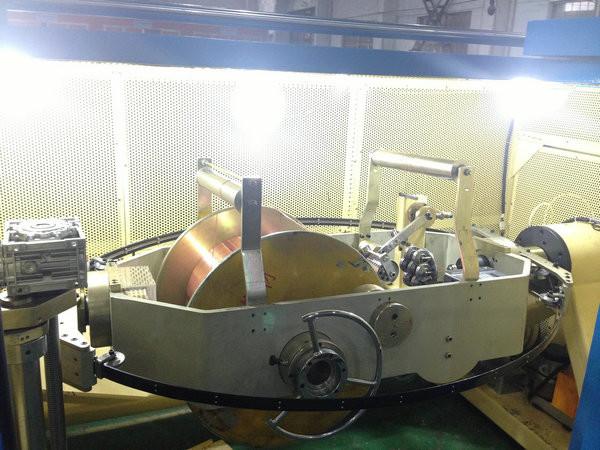

Durable Double Wire Twisting Machine With PLC Touch Screen
Controller
Wire Twisting Machine Characteristics:
1. With FC-100 active back-twist pay-off machine to achieve bunching instead of twisting.
2. Especially for twisting small cross-section area.
3. Use synchronous belt drive,
4. Change guide wheel to change lay distance, easy to operate.
Wire Twisting Machine Specifications:
| Equipment Models | FC-200B | FC-250B | FC-400B |
| Twisting Usage | Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires). | ||
| Single Wire Dia(mm) | 0.016～0.08 | 0.03～0.18 | 0.05～0.32 |
| Stranding Section Area(mm²) | 0.0014～0.035 | 0.0049～0.3 | 0.0137～1.0 |
| Pitch(mm) | 0.8～4.0(14 classes) | 0.8~10.8(24classes) | 3.1～33.3(24classes) |
| Direction of Lay | Free to right or left | ||
Take-up Bobbin(mm) Outer dia*bore*outer width | 200*31*135 | 300*30*185 | 300*30*185 400*56*300 |
| Max Rotating Speed(rpm) | 5000rpm(10000tpm) | 4000rpm(8000tpm) | 3500rpm(7000tpm) |
| Main Motor Power | 2.2KW | 3.7KW | 3.7KW |
| Inverter Power | 2.2KW | 3.7KW | 3.7KW |
| Tension Control | Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin | ||
| Magnetic Powder Clutch | 0.05kgf | 0.3kgf | 0.6kgf |
| Protection | automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived | ||
| Brake Mode | Electromagnetic brake | ||
| Traversing Method | Rolling wire with ring drive units, winding pitch and breadth are adjustable | ||
| Operation Mode | Touch Screen Operation | ||
| Dimension L*W*H | 2000*960*1100 | 2300*1100*1330 | 2850*1150*1350 |
