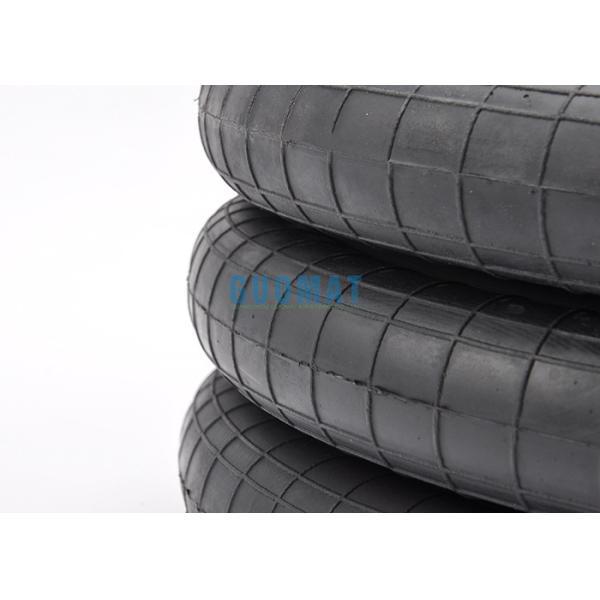

3B14-354 Industrial Air Spring Goodyear Bellows Number 578-93-3-350

Goodyear 3B14-354 Industrial Air Spring Goodyear Bellows Number 578-93-3-350

GUOMAT NO. 3B7808 Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4pcsX3/8-16UNC

Screw Center Distance of Top Cover Plate : 158.8 mm

Bottom Cover Plate Screw (Nut) Tooth : 4pcsX3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 158.8 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

❸ Cover Plate

Top Cover Plate Diameter: 289 mm

Bottom Cover Plate Diameter: 289 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 356 mm

Rubber Bellows Natural Diameter :282 mm

Design Height: 9-13 inches / 229mm-330mm

Maximum Height : 460 mm

❺ Bumper block / Buffer block

With Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop

OEM Original Equipment Manufacturer:

Product Specs for Firestone W013587808

Technical Specs: Firestone W01-358-7808
Compressed Height: 4.00
Top Plate Number:3131 or 3134
Top Plate Width:11.31
Piston Number:3130
Piston Width:11.31
Firestone Bellows Number:313
Goodyear Part Number:3B14-354 ／3B14 354
Goodyear Bellows Number:578-93-3-350 ／578 93 3 350 ／ 578933350
Triangle Part Number:4336
Triangle Bellows Number:6319
Ridewell Number:1003587808C
EZ Ride Number8030170
Note:PEERLESS 0550-00030

Contitech FT 530-32 364

Firestone Style 313
Firestone No. W01-358-7808
FleetPride AS7808
Goodyear 3B14-354
Goodyear Flex No. 578933350
Taurus 6319
Triangle AS-4336
TRP AS78080
Automann SP3B32R-7808

The usal kinds of Double Convolution Air Springs

Air Spring Installation

• Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
• Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
• If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.

Our Advantages

• Long lasting service on almost all truck and trailer air suspensions
• Absorb road shock to help tractors and rigs last longer
• Cut down on vibration and driver fatigue
• Long, trouble free service, constant level hauling, quite cushioned ride
•
•
