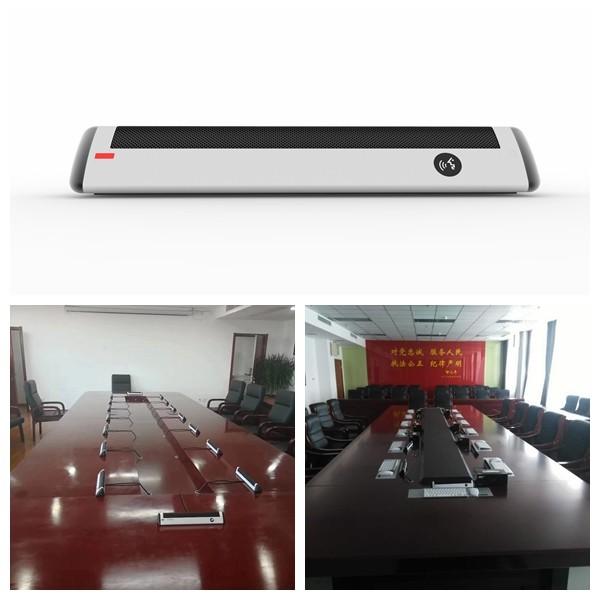

Modern Array Microphone Digital Microphone Array System Delegate Unit Cat5 Network Conference System

The whole housing is made Aluminum alloy and supply different colors for option to meet different conference tables. The compress appearance can be putted on the table and won't occupy extra space on front of speaker.

Excellent sound performance
Advanced voice processing technology, with the unique design of the microphone head, this unit can be accurate pickup and restore the human voice through a high-quality built-in speakers or an external PA system, original AUDIO-LINK digital ring network technology, Automatic Gain Control Volume(AGC) / automatic frequency control(AFC) technology help reach higher volume without triggering the howling effect, ensures each word spoken is well understood.

High tech intelligence platform
Timing function, overtime speaking reminder, network control and meeting management, conference Smart reservation, worldwide firmware real-time updates, the integration of IT technologies ensures smart conferencing platform, the SONICON is one of them.




Item Model for Order
VIS-DAC-T.............. Digital Array Microphone Chairman Unit
VIS-DAD-T.............. Digital Array Microphone Delegate Unit
VIS-CNB...................Splitter Box for every two array microphone


Main Features:

1.Stylish and modern design with touchable butto

2.ARRA-TechTM Microphone array technology and the voice pick-up distance up to 120CM
Priority button and approval button for chairman unit

3.Standard CAT5e and RJ45 connectors are used in microphone to provide more convenient on project and maintenance.

4.One 1.5m cable out to connect the splitter box and keep the table clear

5.The unique AUDIO-LINK digital ring network technology achieve full-digital signal transmission and processing, completely avoid the RF interference from cell phone or similar devices.

6.Strong system robust by the "Hand-in-Hand-Loop-Network" connection technology

7.Support plug and play

Control & Indicators

Indicator for MIC ON/OFF
Chairman unit with priority button and consent button for the delegates

Interfaces

Pluggable microphone base
1x 3.5mm stereo headphone socket
1x CAT5 Cable with RJ45 jack

Technical Parameters

Button: Touchable interface, no physical buttons

Sound Pickup: up to 120CM

Maximum power consumption: 1.0W

Headphone load: 16Ω

headphone volume: 10mW

Headphone jack: 3.5mm stereo

Input impedance: 2kΩ

SNR: 70dB

Frequency response: 20 ~ 20000Hz

Connection: CAT5 / CAT6 cable + RJ45

Equivalent noise: 20dBA (SPL)

Main material: Aluminum

Weight: 1.1kg

Dimension: 185W × 130 D× 50H mm

Operating temperature: 0 ℃ to + 55 ℃

Color: Silver or Black
