| Categories | Clip On Thermal Scope |
|---|---|
| Brand Name: | Guide |
| Model Number: | TA435 |
| Certification: | CE, Rohs, FCC |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 1000 Sets/Months |
| Delivery Time: | 7-10 Working Days |
| Packaging Details: | Standard Exporting Package |
| Style:: | Handheld |
| Kind: | Thermal Imaging Rifle Scope |
| Encapsulation: | IP67 |
| Battery: | Internal Li-ion battery,3.7V,3200mAh |
| Detector Type: | 400×300@25μm |
| Focus Length: | 45mm |
Product Description

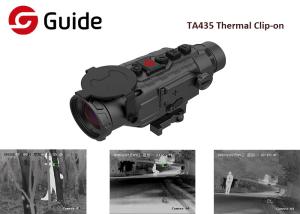

Description for TA435 Multi-functional Thermal Imaging Scope Front Attachment with 400×300 IR Sensor and High Resolution OLED Display
TA435 Multi-functional Thermal Imaging Scope Front Attachment with 400×300 IR Sensor and High Resolution OLED Display is a truly versatile and convenient thermal imaging scope with increased options and functionality. You can use it as a dedicated thermal scope or clipped on in front of your regular day time scope for high quality night vision experience. No need re-zero, no need remove your daytime scope. Just "clip on" right in front of the daytime optics.
Application
Application for TA435 Multi-functional Thermal Imaging Scope Front Attachment with 400×300 IR Sensor and High Resolution OLED Display
Hunting
Outdoor observation and aiming
Wild Adventure
Law Enforcement
Security, search and rescue
Features and Benefits
Features and benifits of TA435 Multi-functional Thermal Imaging Scope Front Attachment with 400×300 IR Sensor and High Resolution OLED Display
• Simple & Adaptable: Switchover among five scene modes by one button, truly realizing
all-weather environment self-adaptation
• Convenient: You neither have to re-zero your scope, nor do you have to remove your regular daytime scope in order to install this one. Just "clips on" right in front of it.
• Versatile: You can use it as a dedicated thermal scope or clipped on in front of your regular day time scope for high quality night vision experience.
• Compact and lightweight: ≤400g
• OLED color eyepiece display, capable of displaying images in
various color modes
• Waterproof IP67
• Super sound-off and bright light Cut-off System, prevent exposure
• Optional Bluetooth remote controller for easy operation
• Quick mount and no-shot zero (recommended magnification of the
day scope/sight : 2-4X)
Specification
Specification for TA435 Multi-functional Thermal Imaging Scope Front Attachment with 400×300 IR Sensor and High Resolution OLED Display
| Detector | |
| Resolution | 400×300@17μm |
| Spectral Range | 8μm~14μm |
| NETD | ≤50mk@25℃ /F1.0 |
| Focus lens | |
| Focal Length | 35mm F1.2 |
| Focusing | Manual focus |
| FOV | 10.66°×8.0° |
| Image Processing | |
| Frame Rate | 50Hz(PAL)/60Hz(NSTC) |
| Digital Zoom | 2×,4× |
| Auto Tracking | Hotspot track |
| Calibration | Automatic calibration/ Manual calibration (shutter) /Manual scene compensation |
| Color Palettes | Black hot, white hot, red hot, green hot |
| Contrast/Brightness | Adjustable |
| Power Systems | |
| Battery | CR123A×2/ICR16340×2 |
| Charging | On External charger |
| Working Time | Continuous Operating over 3 hours@25℃ |
| Interface | |
| 4-Pin LEMO Interface | Analog&video output |
| Display system | |
| OLED | Colorful 0.39 inch OLED screen 1024×768 |
| Pupil Distance | 10mm |
| Pupil Caliber | 20mm |
| Video Format | PAL/NTSC |
| Digital Zoom | 1 |
| View Finder | Monocular display(×2) ±5 adjustable diopter |
| Environment parameter | |
| Operating Temperature | -30℃-50℃ |
| StorageTemperature | -45℃-70℃ |
| Humidity | Working and storage10% ~ 95%, Non condensing |
| Impact | 500G/1ms |
| IP level | IP67 |
| Certificate | RoHS Certificate/CE Certificate/FCC Certificate |
| Physical Characteristics | |
| Weight | ≤400g |
| Size | 150mm×52mm×57mm |
| Package | |
| Standard | Thermal infrared imager/User manual/Blinder/Warranty |
| Optional | Adapter ring/External eyepiece/ CR123A×2(unrechargeable)battery/ICR16340×2(rechargeable) battery/Charger/Bluetooth remote controller/Lemo video cable/Picatinny rail |
| Cover ring adapterA:Compatible with 38/40/42/44/46mm; Cover ring adapterB:Compatible with 48/50/52/54mm; Cover ring adapterC:Compatible with 56/58/60/62/64mm; | |
| Detection Range | |
| Human:1.8m×0.5m | 1000m |
| Vehicle:2.3m×2.3m | 2400m |
| Recognition Range | |
| Human:1.8m×0.5m | 500m |
| Vehicle:2.3m×2.3m | 1000m |






|   |
