| Categories | AUO LCD Panel |
|---|---|
| Brand Name: | AUO |
| Model Number: | G270HAN01.0 |
| Certification: | ISO9001 |
| Place of Origin: | KOREA |
| MOQ: | 1 |
| Delivery Time: | 1-3 Working Days |
| Packaging Details: | Antistatic bag, Bubble Bag, Foam Box and Carton Box. |
| Manufacturer: | AUO |
| Model Name: | G270HAN01.0 |
| Screen Size: | 27.0 inch |
| Screen Type: | LCM , a-Si TFT-LCD |
| Refresh Rate: | 60Hz |
| Touchscreen: | Without |
| Company Info. |
| N&S ELECTRONIC CO., LIMITED |
| View Contact Details |
| Product List |

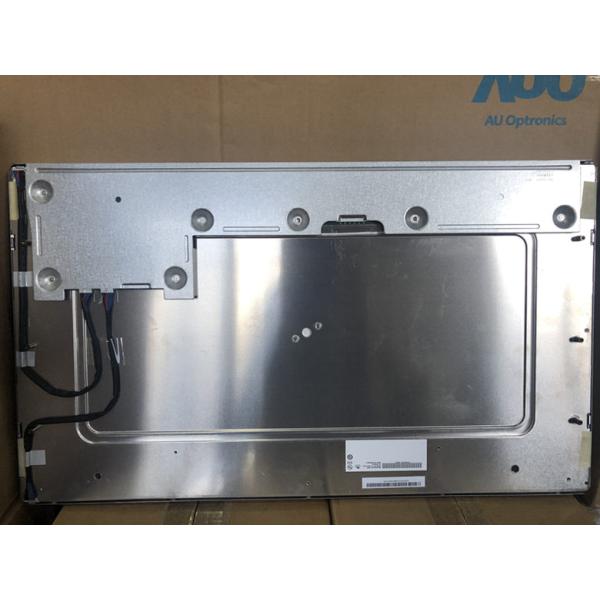

G270HAN01.0 AUO 27 inch LCM 1920×1080 LCD display
AUO G270HAN01.0 Mechanical Details
| Pixel Features : | Pixel Format |
| 1920(RGB)×1080, FHD | |
| Dot Pitch | |
| 0.10375×0.31125 mm (H×V) | |
| Configuration | |
| RGB Vertical Stripe | |
| Pixel Pitch | |
| 0.31125×0.31125 mm (H×V) | |
| Mechanical Size : | Display Area |
| 597.6×336.15 mm (H×V) | |
| Bezel Area | |
| - | |
| Outline Features : | Form Factor |
| Flat Rectangle | |
| Orientation | |
| Landscape type | |
| Aspect Ratio | |
| 16:9 (H:V) | |
| Shape Style | |
| - |
AUO G270HAN01.0 Optical Details
| Basic Information : | Brightness |
| 900 cd/m² (Typ.) | |
| Contrast Ratio | |
| 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle | |
| 89/89/89/89 (Typ.)(CR≥10) | |
| Optical Mode | |
| AHVA, Normally Black, Transmissive | |
| Viewing Direction | |
| Symmetry | |
| Response Time | |
| 3.8/1.2 (Typ.)(Tr/Td) ms | |
| Color Performance : | Chromaticity |
| Wx:0.313; Wy:0.329 | |
| Color Numbers | |
| 1.07B (10-bit) | |
| Color Gamut | |
| 87% NTSC (CIE1931) | |
| Uniformity | |
| 1.33/1.25 (Typ./Max.)(9 points) | |
| Dispaly Performance : | Outdoor Visibility |
| Sunlight Readable | |
| Transmittance | |
| - |
AUO G270HAN01.0 Electronics Details
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
We also have other industrial LCD panels, pls contact to us for the further information


|
