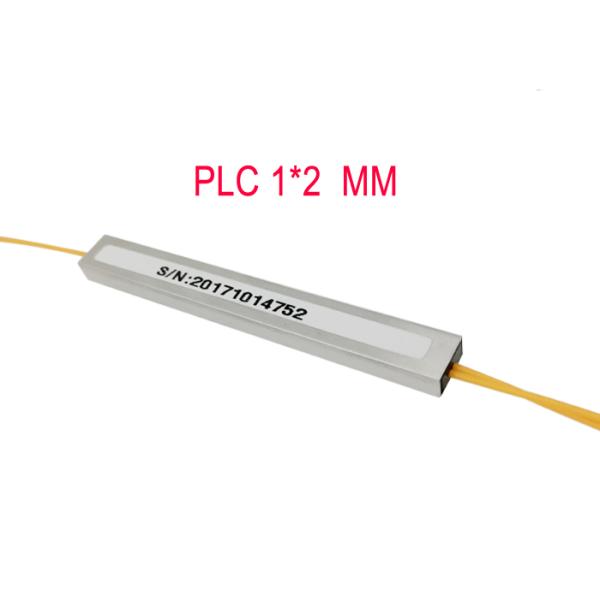

Multimode 1×2 Fiber Optic PLC Splitter 50/125 0.9 Hytrel Orange 850nm

1×2 MM Fiber Optical PLC Splitter 0.9 50/125 0.9 Hytrel Orange 850 nm FBT 1*2 Multi Mode
PLC 1×N Single Mode Fiber Optical Splitter SC/UPC Connector splitter plc Neutral package or Customzied packing way. then put into a carton.KEXINT provides a various of 1×N and 2×N PLC splitters, They are all with superior optical performance, high stability and high reliability to meet various application requirements. PLC 1×8 Single Mode Fiber Optical Splitter SC/APC Connector splitter plc Neutral package or Customzied packing way. then put into a carton.Bare PLC splitter is putting PLC splitter chip and input, output optical fiber array in a square metal tube, out with the diameter of 0.9mm or 250um bare fiber ,fiber can be welded, can also be processing various types of optical fiber connector.

Features:

Performance Index

Parameter	SPEC	Unit
Wavelength	850/1300±15	nm
Coupling Ratio	50/50
Insertion Loss (No Connector)	≤ 4.0	dB
Polarization Dependent Loss (PDL)	≤ 0.3	dB
Return Loss (No Connector)	≥ 45	dB
Directivity	≥50	dB
Storage temperature	-40~85℃	℃
Fiber type	Bare fiber MMC 50/125 OM1~OM3 (no connect)
Fiber Length	≥1.1	m
Package Dimension	Ф90*20*10	mm

Our advantage :

1:We are a factory with more than 200 employees and short delivery times.

2:The product has passed strict testing and the quality is guaranteed.

3:South Korea imports chips, work is more stable;

KEXINT which was founded in the year 2007 is a high-tech enterprise specialized in telecom communication network equipment research and development (R&D), manufacturing, marketing, and providing application solutions and technical services .

Its main products include fiber optic cable, fiber distribution box, fiber optical patchcord , MPO/MTP , and optical splitter (PLC/FBT/WDM), fast connecter , fiber optic adapters, fiber optic attenuators ,We have more than 11 years of experience in passive fiber optic products . In 2016 , we also established OLT/ONU R&D and production. Products are widely used in telecommunications, broadcasting and other fields. Television, power engineering, and other industries. The main market distribution: Russia and other CIS, South Africa, Europe, South America, etc. The company promises: quality and integrity first

Rich experiences in passive production of fiber optical products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years from customers around the earth for its short lead-time, fast delivery, and timely after-services.
