| Categories | High Speed Winding Machine |
|---|---|
| Brand Name: | KR |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 1 SPINDLE |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 100 spindles per month |
| Delivery Time: | 15 work days |
| Packaging Details: | wooden box |
| Name: | Auto Cone Winding Machine |
| After-sales service provided: | Engineers available to service machinery overseas |
| Voltage: | 380V/220V |
| Condition: | New |
| Number of head: | Single Head,Double Heads,more heads |
| Power: | can be customized |

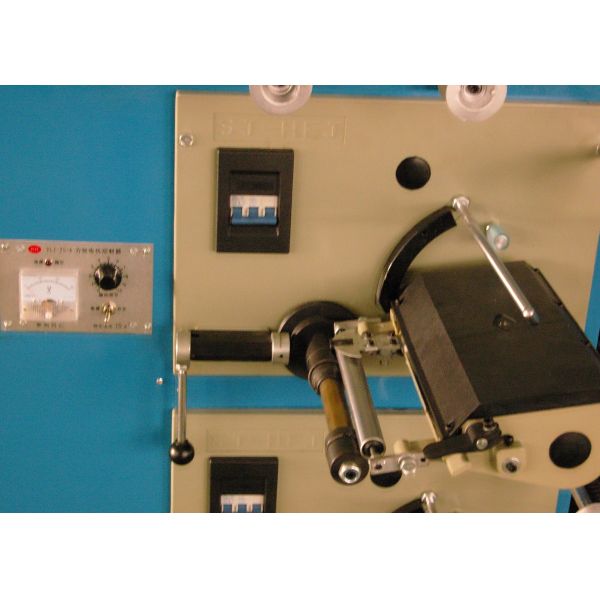

Automatic Thread High Speed Winding Machine Frequency Conversion 380V 220V
Description:
| Minimum | Maximum | |
| Outer diameter target tube (mm) | 180mm | 250mm |
| Target tube weight (kg) | 6kg | 10kg |
| Outer diameter non-metering bobbin (mm) | 110mm | 200mm |
| Non-metering bobbin weight (kg) | 4kg | 8kg |
| Maximum horizontal length | 300mm | 340mm, paper tube |
| Winding speed | 200 | 350 |
| Coated yarn material | Glass fiber and polyester fiber | |
| Yarn diameter (inches) | 0.009 | 0.025 |
| Winding tension | 22 | 33 |
3.main configuration
| Component | configuration |
| Panel | ordinary aluminum alloy panel |
| Housing | 5"-80" custom housing |
| Spindle | 5 inch - 80 inch custom shaft |
| Brake | blackening |
| Limit grade | 80-330mm |
| Reciprocating rod | 5 inch - 80 inch custom |
| Frequency converter | SAJ |
| Switch | Schneider |
|
