Aluminum Alloy Electric Suspended Working Platform External Wall
Cradle ZLP630
FAQ for Aluminum Alloy Electric Suspended Working Platform External
Wall Cradle ZLP630
Q1: What is the Warranty for suspended platform?
A1: For suspended platform, we can supply 0.5 year’s warranty. If
any quality problems (not artificial reason) on our side occurred
during this period, we will supply a free new one as replacement.
Q2: What is the meaning of ZLP for suspended platform model? And
please illustrate.
A2: ZLP is classified according to China National Standard.
“Z” is the acronym of decoration machinery in Chinese language
(Zhuang Xiu Ji Xie);
“L” is the second word acronym of platform in Chinese language
(Diao Lan);
“P” is the acronym of climbing type in Chinese language (Pa Sheng
Shi).
For example: ZLP630 means aerial suspended platform, and 630kg
rated load (630 is the main specification rated load)
Q3: What are the optional parts for your suspended platform?
A3:1) Safety belt

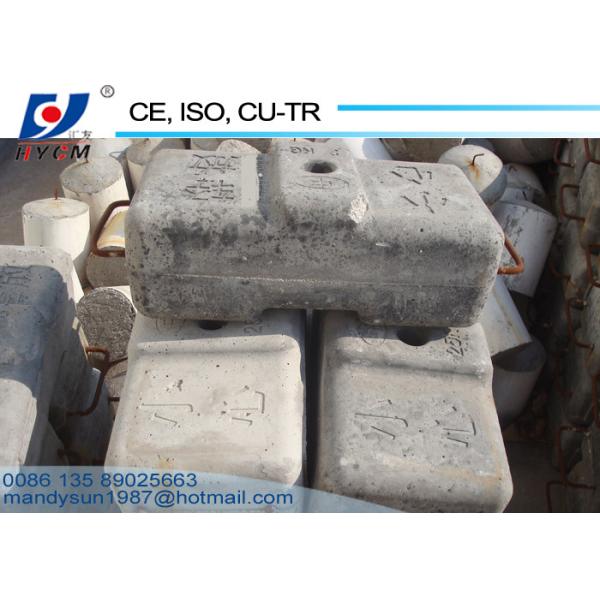

2) Concrete counter-weight. (If you don’t need the weights, we
could supply the molds for you to make them by yourself.)
Q4: What are the safety devices for your suspended platform?
A4: The safety device for suspended platform includes safety wire
rope, safety lock and travel limiter.
Q5: What is process to make an order?
A5: Any inquires will receive our immediate reply (within 24
hours), by contact and communication (online contact is better) to
sigh a contract. Then starting to produce and making package within
10 days after receiving the advance payment. A shipment advice will
offered after shipping so that you could get the goods in time. 24
hours after-sales service will be supplied for you.
Q6: What is your trade items of suspended working platform?
Qingdao or Shanghai or according to Clients' need. We could accept 1 set of our products as your trial order.
Specifications for Aluminum Alloy Electric Suspended Working
Platform External Wall Cradle ZLP630
| Model No. | ZLP630 |
| Rated load(kg) | 630 |
| Lifting speed(m/min) | 9～11 |
| Hoister model | LTD63 |
| Motor power(kw) | 2×1.5 |
| Brake torque(N.m) | 15.2 |
| Rated stretch of front beam(mm) | 1100-1700 |
| Suspending Platform | No. of platform rack | Single rack |
| No. of platform | 3 |
| L×W×H(mm) | (1.5+2+2.5)×690×1180 |
| Suspending mechanism(kg) | 2×175 Kg |
| Counterweight(kg) --optional | 25×40pcs |
| Diameter of steel rope(mm) | 8.3 |
| Voltage(v) 3PHASES | 220V/380V/415V (customized) |
| Ambient temperature | -20℃~+40℃ |
| Ambient relative humidity | ≤ 90%(25℃) |
"6S" SERVICES FOR OUR TOWER CRANE
Smart 1- Collaborate with others to solve your entire problem
Smart 2- Our goal is to provide you with a personalized service and
complete solution
Specialized 1- Strict raw material control, only the best will pass
the test
Specialized 2-Strict quality control, making flawless finished
products
Speedy 1- Professional sales team, guarantee reply with-in 12 hours
Speedy 2- Speedy dispatch with minimal delays
Study 1—Study traditional Chinese values. Educating to be better
person first, making better products after that
Study 2-Educate ourselves with professional for better service
Support 1-We have skilled expert providing all technical support
Support 2-Our front line workers are united and skilled
Sincere1- Think from our customers' perspective and fulfill their
needs with our best effort.
Sincere 2-A warm welcome for every customer, build genuine
relationships from friends all over the Globle.
Photos for Aluminum Alloy Electric Suspended Working Platform
External Wall Cradle ZLP630
ZLP630 Suspended Working Platform for Window Cleaning 630kg Suspension Platform
