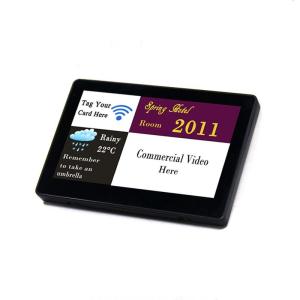

SIBO Touch Android Tablet Q896S With POE NFC Reader SIP Intercom WIFI For Home Automation

The Tablet PC can directly be embedded into a wall , be placed on wall / or desktop with rich application for home application and so on...

• IPS Screen (G+G glass)
• Android 6.0 system
• Inwall / Onwall version
• CBVS , HDMI, Serial port , GPIO , Uart interface
• No physical buttons design
• Slim Body with 3 Brackets for wall mounting
• Camera & Mic

Builtin HDMI (standard ) jack,CVBS port, Standard RJ45 port, USB (standard) , Standard serial port (baud rate from 1200 to 115200) ,GPIO In and Out
It is Wall Tablet , no battrty , no buttoms , it is Serial port Tablet , It is a GPIO tablet, all good features for home automation and so on...

NFC reader Demo video.

https://youtu.be/EYDfZmrjb9k

NFC functions/source code:

Supported Card: ISO14443A Card
Card Reader Type: PN532
RFID reader/writer mode support
· Mifare 1k, 4k, Ultralight, and DesFire cards
· ISO/IEC 14443-4 cards such as CD97BX, CD light, DesFire, P5CN072 (SMX)
· Innovision Jewel cards such as IRT5001 card
· FeliCa cards such as RCS_860 and RCS_854

Tablet detail picture:


Notice: There is no any battery and buttons as normal Tablet PC , auto power on is available !
Builtin HDMI (standard ) jack, CVBS port , Standard RJ45 port, USB (standard) , Standard serial port (baud rate from 1200 to 115200

Desktop bracket and the mounting picture:



Inwall mounting insalltion:





On wall mounting:
