20cm Width Galvanized Wire Mesh For Brick Wall 16*28mm Hole 15m Length

20cm Width Galvanized Brick Wall Mesh 16*28mm Hole 15m Length

Brick Rinforce Mesh is Made of the Hot Dipped Plate.We could produce the length from 10m-100m.It for use primarily as an anti-cracking reinforcement in the construction of brick and block masonry. Coil mesh is available in a variety of widths to suit most wall constructions and is supplied coiled for ease of handling. Additional applications include strengthening cornices, low walls and balconies over door and window openings.We could produce the Weight:480g and 380g/m2.

Specification:

Hole Size"12*25mm And 16*28mm

Width:75mm-300mm

Length:10m-100m

Installation

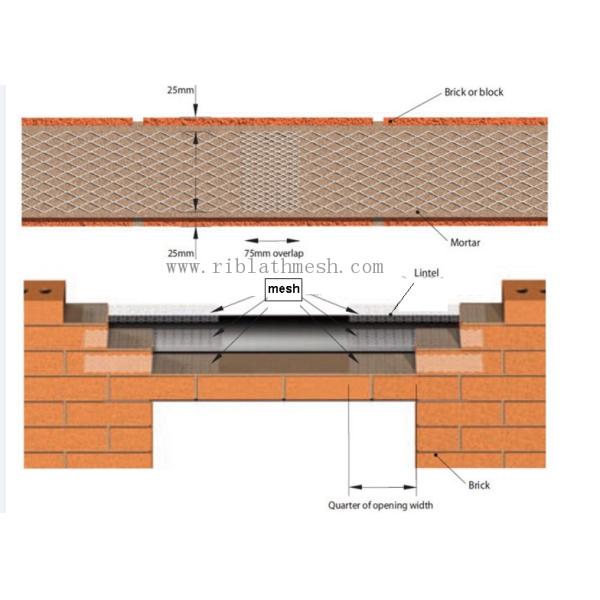

The coil mesh is laid in strips between brick or block courses leaving approximately 25mm clearance from the faces of the work. Where coil mesh joins are required, ensure they overlap by at least 75mm. The reinforcement is then simply embedded in the mortar for the next course.

In most instances, application ever y third course, for the full length of the wall, will be sufficient.

To reinforce brickwork at an opening, e.g. window or door, mesh should be installed to overlap part of the opening, and part of the solid wall.

Thinking of the width of the opening, lay the mesh approximately a quarter of the way across the opening. The mesh should lie the same distance again, across the solid wall.

is sited in Anping County of Hebei Province which is the famous Wire Mesh Land of China. This company is professionally engaged in production, processing and sales of various wire mesh products.

We have first-class production equipment, strong R&D capability, rich experiences and full inspection means to provide full range of wire mesh and processed products for worldwide customers. Wire mesh products we offer include Rib Lath, Angle Bead, Hy Rib Mesh, Coil Mesh / Coil Lath, Wall Plaster Mesh, Frame Tie / Brick Tie , Perforated Metal etc.

Anping Xingtai Wire Mesh Co.,Ltd. follows the vision of Seeking First Quality & Building Good Reputation in doing business and tries to provide quality products and excellent services for our customers. We are now exporting to the USA, Europe, Southeast Asia and some other countries. We would like to establish long-term business relationship with you. Welcome to contact us.
