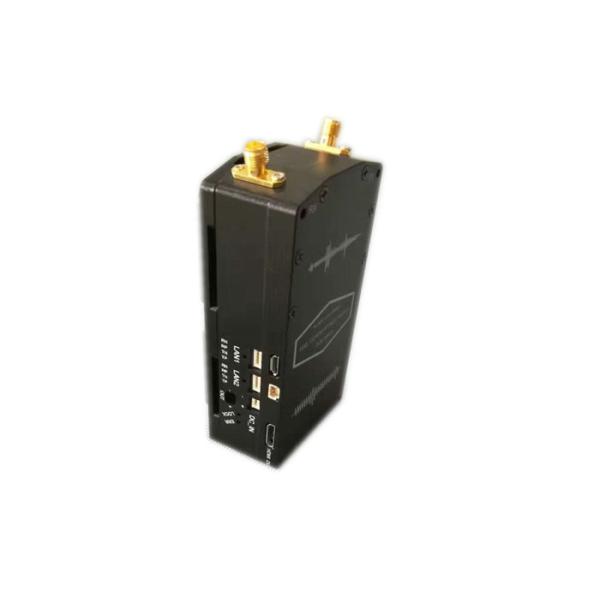

Small Volume Cofdm HD Wireless Transmitter Long Range Full Duplex Data Transceiver

H.264 cofdm wireless video transmitter low latency full duplex data transceiver

Product Introduction:

HN-730 is a Frequency Division Duplex transceiver designed for use in long-range un-manned vehicles,manned vehicles,unmanned boat and ground stations, using COFDM multi carrier modulation and demodulation technology supporting non line of sight range (NLOS) transmission, supports narrow band (1MHz/2MHZ), low latency, high sensitivity long range transmission applications, and uses transparent IP data interface to provide a balanced and stable high-speed data rate uplink ( 30 Mbit/s) and downlink( 30 Mbit/s), highly integrated embedded design,super linear digital predistortion (Digital Predistortion) RF design,improve your reliability in non-line-of-sight and complex environments, enhance building penetration,and provide law enforcement,high definition digital broadcasting, security system, public security, fire-fighting with the performance of COFDM and flexibility of IP, all within the secure network.It is widely used in multi-channel video stream transmission, high standard unmanned control system and intelligent control equipment.

Product features for cofdm wireless video transmitter:

1. Push to talk,two way audio

2. COFDM (Coded Orthogonal Frequency Division Multiplexing) modulation and FDD (Frequency-division duplexing) technology

3. Support HDMI interface with zero encoder,small delay time
4. Using non-standard COFDM modulation and demodulation technology
5. Support non line of sight (NLOS) and high-speed mobile transmission.
6. low latency /End to end transmission large data
7. Transparent network / serial data transmission
8. Supports 128-bit dynamic AES encryption
9. Support full band / ultra narrow band / multi bandwidth modulation (1M/2M/4M/8HZ).
10. Integrated design, small volume, low power consumption

Technical parameters

Applications:

Widely application for UAV system, high speed railway, fire fighting, security, intelligence control and other complex environments.

Shenzhen Huanuo Innovate Technology co.,LTD. is a high-tech company focusing on research and production of wireless mobile digital video tranmission system.Our company is focused on the development of wireless video transmission equipment,with the strength of Mini cofdm video transmitter & receiver,customized solutions and OEM module as customer's request is our advantage.Engineers and R&D developers account for 70 % of the staff, after research development and technology accumulation for years our company has grasped core technologies in RF field,and have the ability to develop chip level and algorithm level technology.

Since the establishment of the company,we adhere to market-oriented,building the network and technology platform.We base ourselves on the construction of innovative high-tech company,the company has a professional research team with RF technology and MPEG2/MPEG4/H.264 code,digital video processing, embedded equipment fields.And provide users with integrated COFDM wireless video transmission systems and technical support services.

Shenzhen Huanuo Innovate Technology co.,LTD. continually concentrate on researching and innovating in the wireless high speed mobile video transmission industry based in LOS/NLOS environments.Which designs and manufactures portable COFDM digital microwave systems, including a full line of analog and digital COFDM portable and fixed transmitters, miniature video/audio transmitters and receivers for surveillance applications, lightweight video/data transmitters and receivers for UAV and UGV system and are built to withstand harsh environments while offering industry-grade performance and features.

Our engineering staff is experienced in a broad range of active and passive RF and microwave electronics and embedded software and firmware design. With a full suite of design tools and test equipment, we welcome your custom product requirements. Our factory is configured to support total project management from the design and prototype stages through full production.
