| Brand Name: | JingCaiYuan |
| Model Number: | P1.25 small pitch LED full color display |
| Certification: | CE ROHS |
| Place of Origin: | China |
| MOQ: | 10㎡ |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 8000㎡/month |
| Delivery Time: | 10-20 days |
| Packaging Details: | Wooden box |
| Color temperature: | 9600K |
| Pixel density: | 640000 dots/square mete |
| Power supply: | AC220V/50HZ AC110/60HZ |
| Earth leakage current: | <2mA |
| Working temperature: | -25℃ to 45℃ |
| Working environment humidity: | 10%-50% |

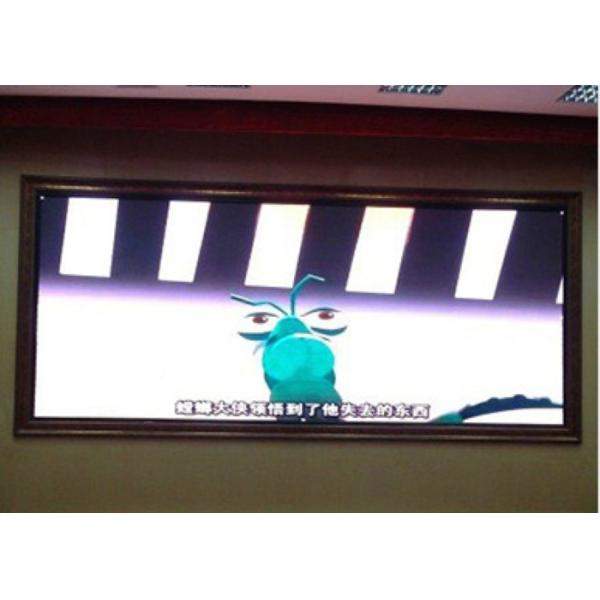

Full RGB Small Pitch LED Display Seamless Combination Quick Replacement
Details
1. Modular design for quick installation and removal
2. Highly reliable data hot backup, avoiding any communication risks during the exhibition
3. High refresh rate up to 4200Hz, and live video without flashing at all
4. Super brightness and color uniformity, pixel calibration before leaving the factory
5. Horizontal / vertical viewing angle up to 120° uniform HD display, no color cast, no color spots, no color blocks
Application:
Full color screens are widely used in government and enterprise projects, exhibitions, cultural tourism, commercial real estate, outdoor advertising media and other fields. For example: supermarkets, restaurants, travel agencies, commercial plazas, cinemas, clubs, schools, hotels, hospitals, communities, commercial buildings, subway stations, airports, etc.
In short, many places need led screens for various purposes, we will do our best to meet trends and needs.
Description:
| Module size:200*150mm | Module resolution:160*120 |
| Module type: light and drive in one | Drive mode: constant current drive |
| Module working voltage: +4.2V | Point spacing:1.25mm |
| Module average power: 12W | Pixel composition:1R1G1B |
| Module maximum power: 26W | Vertical viewing angle:140° |
Specification (parameter):
Unit cabinet
| Module distribution | 2*2 block |
| Cabinet resolution | 320*240 |
| Maximum power of cabinet | 104W |
| Cabinet average power | 52W |
| Module uniformity | <5% |
| Cabinet size | 400*300mm |
| Cabinet color | black, grey |
| Protection degree (front/back) | IP43 |
Full screen
| Application | indoor |
| White balance brightness | ≥700cd/m2 |
| Color temperature | 9600K |
| Pixel density (dots/square meter) | 640000 |
| Power supply | AC220V/50HZ AC110/60HZ |
| Earth leakage current | <2mA |
| Working temperature | -25℃ to 45℃ |
| Working environment humidity | 10%-50% |
| Environmental temperature | -40℃ to 80℃ |
| Frame change frequency | 60Hz |
| Refresh rate | ≥3000Hz |
| Optimum line of sight | ≥1.25m |
| Grayscale/color | 281 trillion |
| Brightness adjustment software | Software 16-level adjustment / 16-level automatic |
| control mode | Synchronized displays with computer screen |
