| Categories | Temperature Humidity Test Chamber |
|---|---|
| Model Number: | TZ-HW80 |
| Certification: | CE Complied |
| Place of Origin: | Guangdong, China |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T, Western Union, , MoneyGram |
| Supply Ability: | 500 sets/ month |
| Delivery Time: | 5-7 working days |
| Packaging Details: | Wooden case outside with pallet, in total 1-2CBM |
| Model: | TZ-HW80 |
| Other name: | Temperature Humidity Test Chamber |
| Warranty: | 1 year |
| Suitable for: | Lab |
| Touch controller: | Programmable |
| Internal Volume(L): | Climatic Simulation |

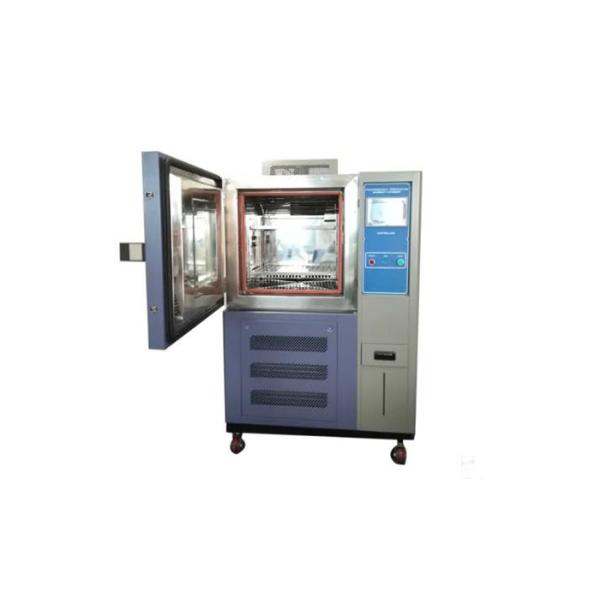

Lab Environmental Temperature Humidity Test Chamber For Climatic Simulation
Temperature Humidity Test Chamber Introduction
The temperature and humidity test chamber can accurately simulate
the complex natural environment of low temperature, high
temperature, high humidity, low temperature and low humidity, which
is suitable for the product detection of plastics, electronics,
food, clothing, vehicles, metals, chemicals, building materials and
other industries.
Temperature Humidity Test Chamber FEATURE
1. International brand compressor and internationally renowned
refrigeration accessories are adopted to ensure stable performance
of the refrigeration system.
2. The inner box is made of SUS304# high-brightness mirror
stainless steel.
3. The outer box adopts anti-rust treatment cold-rolled steel plate
(spraying), with reasonable structure and elegant appearance.
4. Programmable touch controller
5. Multiple safety protection: refrigerant high pressure
protection, compressor overload protection, over current
protection, over temperature protection, leakage protection.
Temperature Humidity Test Chamber TECHNICAL PARAMETERS
| Model | TZ-HW80 Temperature Humidity Test Chamber | |
| Internal Volume(L) | 80L | |
| Dimensions | Studio Size(mm) | 400*400*500 |
| Standard Machine Size(mm) | 900*902*1350 | |
| Small Vertical External Size(mm) | 1000*750*1650 | |
| Structure | Combined structure (If the door is not wide enough, small size is available, width reduced by 250 ~ 300mm) | |
| Standard Weight (Kg) | About 280 | |
| Performance | Test Environment Conditions | Environment temperature+25ºC,Relative humidity≤85%,No sample in test chamber. |
| Corresponding Standard | GB/T 5170.2-1996 "Method for verification of basic parameters of environmental test equipment for electric and electronic products" | |
| Test Method | Completely stationary test mode for the object to be measured. This method is the first choice for testing, research and semiconductor screening of electronic components. | |
| Parameters | Control Methods | Balanced temperature and humidity control mode(BTHC) PID Intelligent Adjustment |
| Temperature Range | -40ºC~+150ºC -70ºC~+150ºC | |
| Humidity Range | 20%~98%R.H (0%~100% R.H can be customized) | |
| Heating Rate | 1-2ºC/min (Linear Adjustment 3-5℃/min can be Customized) | |
| Cooling Rate | 0.7ºC-1ºC/min (Linear Adjustment 3-5℃/min can be Customized) | |
| Uniformity | Temperature: ±1.5ºC Humidity: ±2.5%R.H | |
| Fluctuation | Temperature: ±0.5ºC Humidity : ±2%R.H | |
| Temperature Calibration Point | +23 °C and +80 °C | |
