Tri - Axle 45 Tons Heavy Duty Semi Trailers For Warehouse / Store House

Categories Heavy Duty Semi Trailers
Brand Name: CHUSHENG
Model Number: CSC20190628
Certification: CCC, ISO9001
Place of Origin: China
MOQ: 1 unit
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 500 Unit/Units per Month
Delivery Time: 30-45 work days
Packaging Details: Nude
Use: Truck Trailer
Type: Semi-Trailer
Max Payload: 40 TONS, 45 tons, 50tons
Braking System: WEBCO Optional
Function: Transport 20ft 40ft Container
King pin: JOST 2.0 Inch (50mm)/3.5 Inch (90mm)
Size: 11800*2500*2200
Material: Steel
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Tri - Axle 45 Tons Heavy Duty Semi Trailers For Warehouse / Store House

High Quality Tri-axle 45 Tons Capacity Cargo Trailer Warehouse Storehouse Semi Trailer


Product Description


Storehouse semi trailer is mainly used for transport of goods not spin, such as: tractors, loaders, excavators, bulldozers, etc., applied to many industries, for large cargo transportation is very convenient. we can be provided based on client requirements.


1. High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.

2. The welding machines and most skilled workers make welding of low bed trailer more frequent and strong.

3. Two pieces spare tire carriers, water tank, fuel tank etc, are optional accessories which build modern transportation.

4. We have standard low bed semi trailer which is with 3 axles and 60 tons loading capacity. Meanwhile, we can have your trailer customised with options.


Product Parameter


DIMENSIONS
Tare Weight9900kg
Overall Length12400mm
Overall Width2480mm
Payload45000kg
Photo for reference. Final products can be made according to exact requirements
SPECIFICATIONS
I Beam& ChassisHeavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 16mm,width 140mm; Middle Flange 8mm,Height 600mm, Bottom Flange 18mm,width 140mm.
Axle3 axles
HJ Brand 13 ton
SuspensionGerman Style Heavy duty mechanical suspension
Floor3mm checker plate
Leaf Spring13 piece Leaf spring for heavy loading
King PinJOST brand 2” Bolt-in King Pin
Landing GearJOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim9.0-22.5 wheel rim ,13 pieces
Tire12R22.5 tire with one spare tire, 13 pieces
Twist Lock12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down.
Spare TireOne set of spare tire including a carrier
Braking SystemWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
AccessoriesOne standard tool box

Our Service


Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.

After-sale service:
1. Lifetime free maintenance and upgrade. Spare parts could be supplied by cost price.
2. Free technician training, engineer abroad for customer service.
3. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
4. Special service for big project, such as stadium, exhibitions, squares and so on.

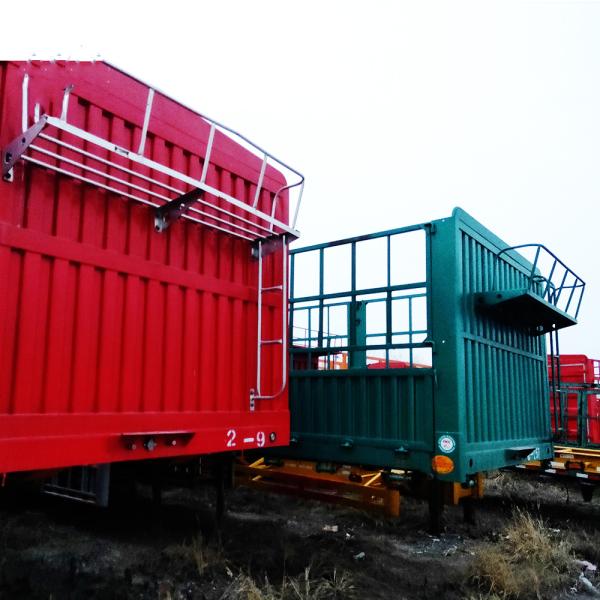

Product Picture


Quality Tri - Axle 45 Tons Heavy Duty Semi Trailers For Warehouse / Store House for sale
