| Brand Name: | Okystar |
| Model Number: | IQ-Kepad 02 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1pcs |
| Price: | $55.00, 1-10pcs; $53.88,11-100pcs; $51.88, 100-300pcs; $49.88, 300pcs-500pcs. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | ≥1000 pcs Per Day |
| Delivery Time: | 3-5 Work Day |
| Packaging Details: | Carton Package |
| Working voltage: | 24VDC±10% |
| Mechanical Life: | 100,000 |
| Max Power Consumption: | 1.6w |
| Operating Temperature: | 32°-113° (0-45℃) |
| Operating Humidity: | 20% 93% No Condensing |
| Net Weight: | 126g/ PCS |

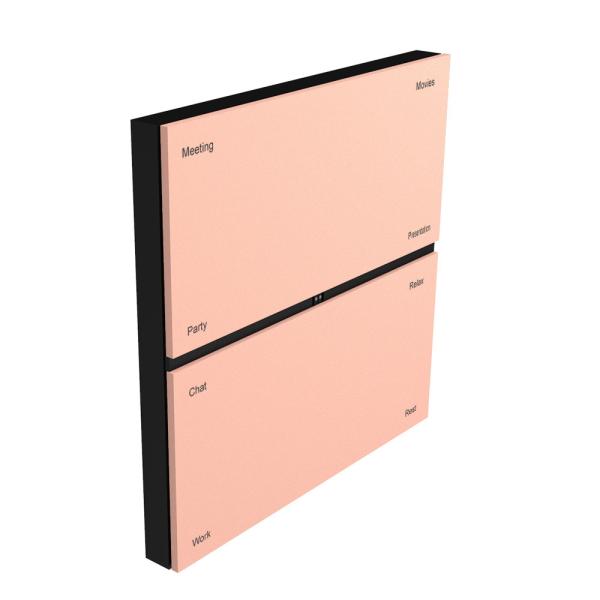

Soft Touch Wall Light Switch With Inductive Background Light
Description of Soft Touch Switch
Installed with standard-86 bottom box, supports seamless
connection, matched with a variety of materials and colors panel,
provides 8 keys each panel, Inductive backlight, reset touch
button, with vibration effect, mature structure, stable
performance, adopts(aluminium alloy) oxidation process.
Functional characteristics
■Provides 8 programmable buttons, ICONS can be engraved or
silk-screen printed;
■ Button mode: short press, short press release, long press and
long press release;
■ Inductive backlight;
■ Button vibration effect;
■ Standard 86 box installation, supports multiple panels to connect
seamlessly;
■ Standard process, champaign gold, using (aluminum alloy)
oxidation;
■ Panel LED indicator will flash if bus abnormal ;
■ Each button with LED indicator light;
■ Supports online refresh program;
■ Bus communication;
Technical Parameters
| Working voltage | 24VDC±10% |
| max power consumption | 1.6w |
| static power consumption | 0.5W |
| input key | 8 keys |
| Appearance color | champagne gold(other colors can be customized) |
| LED indicator | 8 key to activate white LED light |
| Key type | reset touch button, with vibration effect |
| backlight | infrared induction backlight |
| address setting | 1 × address dial, address 1-63 can be set; |
| hole size of bottom box | 86mmx86mmx45mm (length×width×depth) |
| external size (length×width×height) | 86mm×86mm×42mm; |
| storage temperature/humidity | -40℃ -- 55℃/10% -- 93%RH; |
| Working temperature/humidity | 0--45℃/20% -- 93%RH |
| installation mode | standard 86 bottom box installation |
| net weight | 126g/PCS |
Different packing at optional:
1. Retailing Packing:
Neutral Carton Package
2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential
electrostatic hazards
3. Customized Packing
Can design and pack according to your requirement,such as colorful
box,blister packing,sealed packing with your company information,
bar code,ect. ( Discuss extral)
FAQ:
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting
control solution that incorporates communication between various
system inputs and outputs related to lighting control with the use
of one or more central computing devices. Lighting control systems
are widely used on both indoor and outdoor lighting of commercial,
industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting
control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for
you, economic and customization, with industrial-grade design,
product architecture in line with international electrical
standards, using high-quality components, products are stable and
reliable.
|   |
