Q35Y-25 High Efficiency Metal Iron Worker Hydraulic Ironworkers With Double Cylinder

Categories	Gear Hobbing Machine
Brand Name:	wadley
Model Number:	Q35Y-25
Certification:	ISO 9001
Place of Origin:	China
MOQ:	1 set
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	100 sets / month
Delivery Time:	15 working days
Packaging Details:	wooden case
Motor Power (kW):	7.5
Rated Power:	4kw
Function:	Steal Punching and Shearing Cutting
Applicable Industries:	Manufacturing Plant
CNC or Not:	Normal
Voltage:	220v/380v

Contact Now

Add to Cart

Company Info.

Henan WadJay Machinery Co.Ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

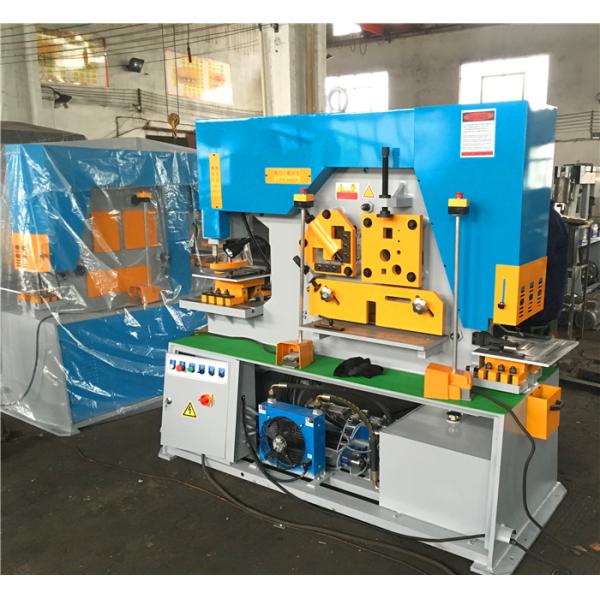

Q35Y-25 High Efficiency Metal Iron Worker Hydraulic Ironworkers With Double Cylinder

Q35Y-25 High Efficiency Metal Iron Worker Hydraulic Ironworkers With Double Cylinder

Performance & Features:

Flat bar cutting, profile cutting, punching hole and notching work can be performed on
the machine within the rated specification, with extra equipment, the machine is able to
cut, punch and bend in special shape.
The machine adopted hydraulic driving system and has a perfect structure, with light
weight and low noise, stable performance and overload protecting device.

1). Robust and accurate steel frame
2). Large punch table with scales
3). Removable bolster for punching flanges and channel and beam
4). 2 independent hydraulic cylinders
5). 2 shielded foot controls
6). 2 Separate Die Openings for over sized punching
7). 5 working stations for wide applications
8). power inching on all 5 work stations
9). plate shear support table and notching table
10). adjustable stroke controls with indicators on both cylinders
11). punching machine: Movable work light
12). overload protection on hydraulic system
13). electric back gauge
14). optional bending attachment

Main Using:

The machine is mainly used for cutting flat bar, profile, punching hole and notching.
It can be widely used in Shipyard, Electric, Bridge, Auto-mobile, Hoisting & Transportation,
Metal construction and other machinery factories etc.

Model	Punching Pressure	Max cutting thickness(mm)	Max.punching diameter(mm)	Angle of shear(°)	Slider trip (mm)	Trips frequency (times/min)	Throat depth (mm)	Punch depth (mm)
Q35Y-12	35	12	25	7	35	10-18	115	12
Q35Y-16	60	16	25	7	80	9-25	300	16
Q35Y-20	90	20	30	8	80	10-28	355	20
Q35Y-25	120	25	35	8	80	9-18	400	25
Q35Y-30	160	30	38	8	80	7-16	600	26
Q35Y-40	200	40	40	8	100	6-16	530	35

Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).

Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.

Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.

Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.

Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.

Q6.Can I trust you?
Sure, we're Made in China Gold Suppliers,

Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.

Q8.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
