| Categories | Stainless Steel Woven Wire Mesh |
|---|---|
| Place of Origin: | Hengshui,China |
| MOQ: | 2 Rolls |
| Price: | 50-400 us dollar/roll |
| Supply Ability: | 50000 Square Meter/Square Meters per Day |
| Delivery Time: | If we have in stock,10 days.For the product need to produce,according to order quantity,need to calculate |
| Packaging Details: | packed with water-proof paper, woven bag and also can be made as per client's requirement. |
| Material: | Stainless steel wire |
| Hope shape: | Square or rectangular |
| Type: | Weave Wire Mesh |
| Wire gauge: | 0.025--2.0mm |
| Roll width: | 0.5m to 6m |
| Roll length: | 1-30m or as per requirement |
| Mesh size: | 1-635 Mesh |
| Feature: | Alkali- resisting |

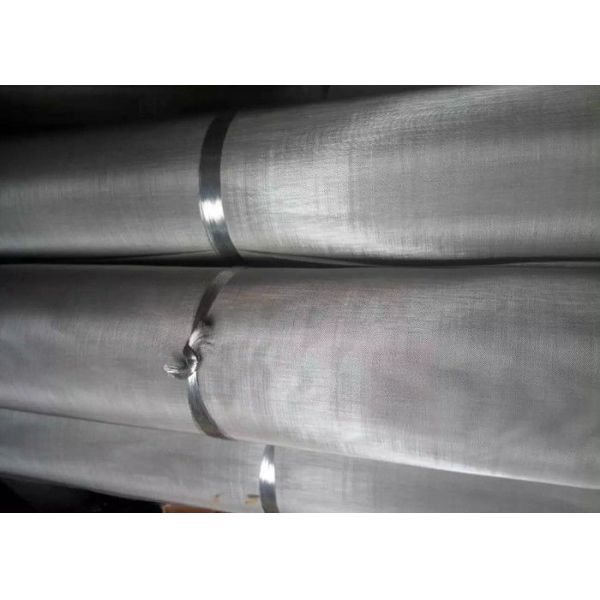

304L 1250 635 mesh stainless steel plain twill weave wire mesh,stainless steel screen printing wire mesh
Feature:
Uses: Stainless steel wire mesh is used for mining, petroleum, chemical
industry, food, medicine, machinery manufacturing and other
industries.
We can produce all kinds of stainless steel wire mesh, including
stainless steel square wire mesh and stainless steel twilled woven
mesh. Stainless steel wire mesh with its anti-wearing, heat
resistance, acid resistance and anti-corrosion properties, is used
popularly for mining, chemical industry, food industry, the
pharmaceutical industry and many other fields.
Features:
Detail specification
Specification:
Size
Meshes per linear inch | Wire diameter | Width of opening | Open area percent | Weight-Pounds per 100 Sq.ft. | ||
| lnches | mm | lnches | mm | |||
| 1χ1 | 0.157 | 4 | 0.84 | 21.4 | 71 | 110.97 |
| 3χ3 | 0.079 | 2 | 0.25 | 6.4 | 58 | 82.45 |
| 4χ4 | 0.063 | 1.6 | 0.187 | 4.75 | 56 | 104.8 |
| 5χ5 | 0.055 | 4.1 | 0.14 | 3.68 | 52 | 68.25 |
| 8χ8 | 0.043 | 1.1 | 0.08 | 2.08 | 42 | 66.83 |
| 10χ10 | 0.02 | 0.51 | 0.08 | 2.03 | 64 | 26.1 |
| 12χ12 | 0.023 | 0.584 | 0.06 | 1.52 | 51.8 | 42.2 |
| 14χ14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 | 49.8 |
| 16χ16 | 0.018 | 0.457 | 0.0455 | 1.13 | 50.7 | 34.5 |
| 20χ20 | 0.016 | 0.406 | 0.034 | 0.86 | 46.2 | 34.4 |
| 30χ30 | 0.012 | 0.305 | 0.0213 | 0.54 | 40.8 | 29.4 |
| 40χ40 | 0.01 | 0.254 | 0.015 | 0.38 | 36 | 27.6 |
| 50χ50 | 0.08 | 0.203 | 0.012 | 0.31 | 36 | 22.1 |
| 60χ60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5 | 23.7 |
| 80χ80 | 0.0055 | 0.14 | 0.007 | 0.18 | 31.4 | 16.9 |
| 100χ100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 | 14.2 |
| 100χ100 | 0.004 | 0.102 | 0.006 | 0.15 | 36 | 11 |
| 100χ100 | 0.0035 | 0.089 | 0.0065 | 0.17 | 42.3 | 8.3 |
| 110χ110 | 0.004 | 0.1016 | 0.0051 | 0.1295 | 30.7 | 12.4 |
| 120χ120 | 0.0037 | 0.094 | 0.0046 | 0.1168 | 30.7 | 11.6 |
| 150χ150 | 0.0026 | 0.066 | 0.0041 | 0.1041 | 37.4 | 7.1 |
Our stainless steel wire mesh product range
About us
Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter
of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei
province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
