| product name: | F-97 smal handheld Fiber Optical core to core digital alignment Fusion Splicing Machine |
| Splicing program: | 40 groups |
| Typical splicing time: | 8 seconds |
| Diameter of coating: | 160 – 900μm |
| Company Info. |
| NEW LIGHT OPTICS TECHNOLOGY LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

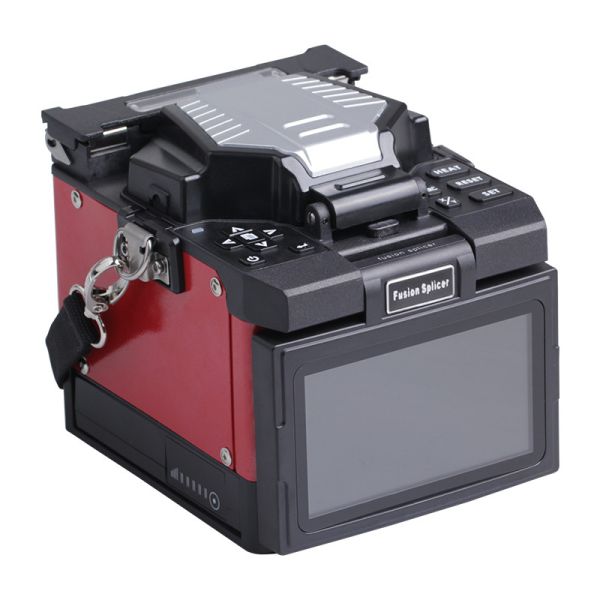

F-97 smal handheld Fiber Optical core to core digital alignment Fusion Splicing Machine
Features
●Handheld, Small, Light
●Industrial standard screen
●Various colors are available
●Core to core digital alignment
●8s splicing stime, 26s tube heating time
●5800mAh and pluggable Li-battery, Typical 200 cycles
●ARC calibrated by temperature and air pressure automatically
●Apply to bare fibers, indoor cables and jumper wires splicing
| Applicable fiber | SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657) |
| Fiber count | Single |
| Applicable fiber dimensions | Cladding diameter: 80 -150μm, Coating diameter: 160 – 900μm |
| Typical splice loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
| Return loss | >60db |
| Fiber cleaved length | 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm ) |
| Splicing program | 40 groups |
| Operate mode | Manual, Automatic |
| Auto-heating | Available |
| Typical splicing time | 8 seconds |
| Tube heating time | 26 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber view magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing method and display | 2 CMOS cameras, 4.3 inch color LCD monitor |
| Storage of splice result | 4000 results |
| Loss evaluation | Available |
| Tension test | 1.8-2.2N |
| Interface | GUI menu interface, easier operation |
| Battery capacity | 5800mAh, typical 200 cycles(splice and tube heat), pluggable inner Li-battery |
| Power supply | Adaptor, input: AC100-240V(50/60HZ) |
| Electrode life | More than 4000 ARC discharges, can be replaced conveniently |
| Terminals | USB 2.0 port, for uploading splice results and upgrading software |
| Operating condition | Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃～+50℃;Wind speed: max 15m/s |
| Dimension | 149mm(L)x120mm(W)x127mm(H) |
| Weight | 1.9kg including battery |
| Package | Packed in carton with protection foam, Size 43cm*37cm*27cm, G.W.6.5kg |
Details Display
splicing display
