QHCL1800mm - 5 Ply Corrugated Cardboard Production Line / Corrugator Line

Categories Corrugated Cardboard Making Machine
Brand Name: QH-PACK
Model Number: QHCL1800-5Ply
Certification: CE ISO
Place of Origin: Cangzhou City,Hebei Province,China
MOQ: 1 SET
Price: USD 180000-210000 PER SET
Payment Terms: L/C, T/T
Supply Ability: 10 SETS/PER YEAR
Delivery Time: 150 DAYS
Packaging Details: NORMAL PACKAGING
Name: QHCL1800-5 Ply Corrugator Line
Function: 5 Ply Corrugated Cardboard Making
Design Speed: 120 m/min
Working speed: 100 m/min
Feature: New model Cassette Single Facer machine
Thin blade: Tungsten
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

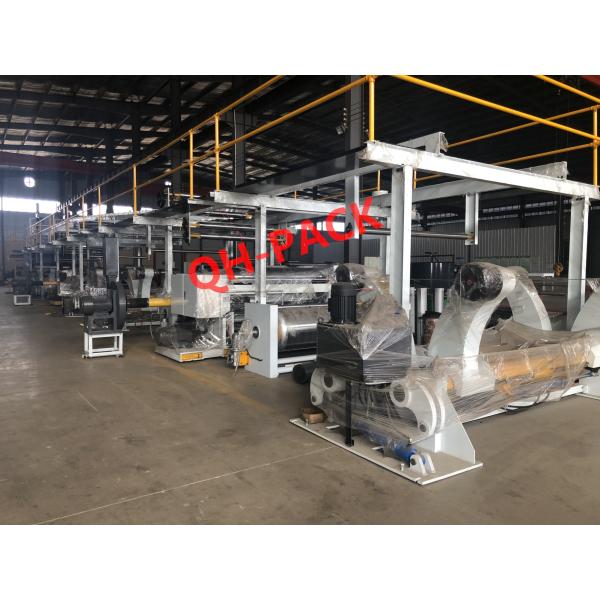

QHCL1800mm - 5 Ply Corrugated Cardboard Production Line / Corrugator Line

QHCL1800mm-5Ply Corrugated Cardboard Production Line

Product Description
ModelNameUnit/setNote
QHMRS-1800HHydraulic Reel Stand5

Main spindle ¢ 242mm, hyperbolic heavy-duty rocker arm, tooth-type clamp paper head, ventilated disc-type multi-point brake, hydraulic drive up and down, left and right translation, and medium.

Guide rail length 6000mm, trolley adopts 10mm middle plate welding.

QHPH-600Single Pre-heater (floor)4Roller ¢ 600mm, including pressure vessel certificate. Electric adjustment angle. The wrap angle can adjust the heated area of the paper within 360°.
QHSF-280SSingle Facer2Corrugated main roll ¢ 280mm, material 48CrMo alloy steel. Cassette model, belt transmission structure.glue tray stainless steel
QHPH-600Triplex preheated1Roller ¢ 600mm, including pressure vessel certificate. Electric adjustment angle. The wrap angle can adjust the heated area of the paper within 360°..
QHOB-1800DDuplex Bridge1The main beam 200mm channel steel, independent variable frequency motor driven paper transport, adsorption tension. Electric correction.
QHG-1800DDouble glue machine1Coated roller diameter 240mm; engraved 25-line pit type net pattern,glue tray stainless steel
QHDF-1800Double Facer machine1Drying department 14 heating plates, pneumatic lifting pressure roller, using dense pressure roller.
QHSS-1800EElectric adjustment thin blade machine1Electric adjustment knife, electric bias, 5 knife 8-wire type, blade made of tungsten alloy steel.
QHNC-1800HNC Cut off machine1Full AC servo control, energy storage brake, spiral knife structure, oil-immersed gear drive, 10.4 inch touch screen display.
QHAS-1800SStacker1Electrically adjust the cardboard size and pneumatically control the lateral output cardboard.
ZQSteam system1Including equipment pipeline valves, steam traps, meters and other steam components, customer-owned heat sources and pipelines.
ZJZGlue making system1Pipeline customers bring their own. The glue making device consists of a carrier tank, a main tank, a storage tank, and a glue pump and a back pump.
ZJEElectric Part1Frequency converter use Delta brand.electric part use Schneider brand.
