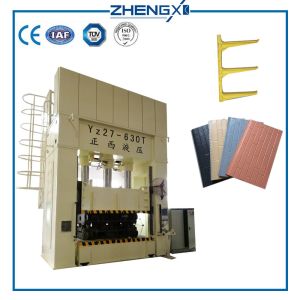

Auto Hydraulic Press Servo Mechanical Press With Movable Worktable

Servo Motor Auto Hydraulic Press Servo Mechanical Press With Movable Worktable

industry belongs to ZHENGXI Yz27 series which mainly be used on metal forming technology, also called metal stamping press, sheet metal deep drawing press or H frame type hydraulic press.

Application

ZHENGXI Yz27-800T H Frame Servo Motor Energy Saving Sheet Metal Deep Drawing Hydraulic Press Machine for automobile industry are used for stamping, deep drawing and powder forming have multi-function can process sheet metal including technology like deep drawing, stamping, bending, cutting and flanging. It can apply on almost ALL kinds of forming techinology. Usually it can be used on following technology.

• Metal sheet deep drawing, bending, flanging, cold extrusion, cutting

• Calibration, press-fit, powder forming, abrasive products forming

• SMC/BMC/GMT, plastic products, rubber products, insulation material heat press

This kind of press machine are widely been used for automobile industry.

Key Features

• Body: Main body use Q345B steel and main big parts are with welded structure, in order to make sure the quality of welding, those big parts will be processed with annealing treatment to eliminate welding deformation and stress, positioned block has been used in the joint surface between the lower platen, column, beam to prevent dislocation to guarantee the precision of installation; Four tie bar has been pre-tightened by hydraulic force, slide use eight side guiding system to reach the advantage of high adjustable precision, good rigidity. Besides, the guiding system use wear resistant bronze material, it has good wear resistance and long life use.

• Cylinder: Main cylinder body use whole parts 45# quality forged steel as well as piston and plunger, surface with hardening treating, hardness can reach HRC45 or more. Seals use imported components to guarantee the sealing.

• Lubrication device: Slider and hydraulic cushion rail adopt centralized intermittent oil lubrication system, it has lubricating oil level indicator and filter clogging alarm function, you can set the lubrication time on the touch screen.

• Hydraulic System: The machine is equipped with the oil filtration system, when operate the machine, this system automatically circulate the oil tank filter to clean the oil; the pump and motor group and hydraulic control valve has been placed on the surface of the oil tank, main pump and motor group use horizontal installation method.At the bottom of the tank, pump inlet is equipped with a permanent magnet, remain the impurities on the permanent magnet, reducing hydraulic system failure.

• Oil Tank: it is mounted on the top: tank disposed on the side of the upper platen, it has oil indicator, and with oil clogging alarm system.

• Noise: According to DIN EN ISO 11202 stds measured in 1 m distance form operator working position on a height of 1.6 m for a time of 90 s.

• Painting: As per customer’s requirement.

• CE-Norm: This offer is for the supply of machine according to Directives 2006/42/EC and its amendments.

Chengdu Zhengxi Hydraulic Equipment Manufacturing Co., Ltd. was founded in 2009 with a registered capital of 30 million yuan. It is a company integrating research, design, manufacture and sales of hydraulic equipment. The company is located in the "land of abundance" "the hometown of panda" Chengdu. The factory covers an area of about 75 acres. It has always been known for producing high-precision, high-quality hydraulic presses, and has established a good reputation and credit in the domestic and foreign industries. The factory has more than 70 sets of finishing equipment, including Japan's Mitsubishi floor-standing composite boring machine, imported heavy-duty lathes, large vertical vehicles and other processing equipment. Ultrasonic flaw detector, hardness tester, spectrometer imported dynamic balance machine and other testing equipment, to ensure that every process in the production process is improved. The main product series include: 100-16000 tons of molding presses; 100-20000 tons of metal drawing (stamping) forming hydraulic presses. Products are widely used in automotive, aerospace, high-speed rail, shipbuilding, power, bathroom and other industries, providing key equipment and advanced technical support for a number of important industries.
