| Categories | Vibration Test Equipment |
|---|---|
| Brand Name: | ASLI |
| Model Number: | ES-10 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500 sets per year |
| Delivery Time: | 40 workdays |
| Packaging Details: | standard export plywood case |
| Force: | 10KN |
| Standard: | UN38.3 &UL1642 |
| Frequency: | 5~3000hz |
| Rated Acceleration: | 100g |
| Rated Speed: | 1.8m/s |
| moving coil: | 14kg |

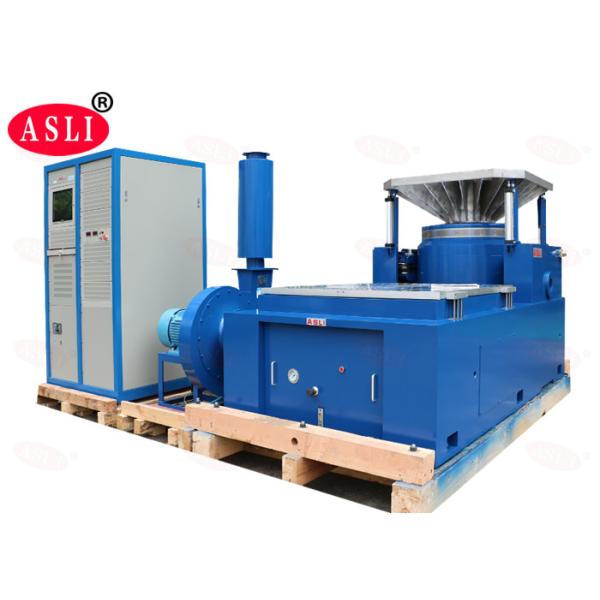

Battery testing Electromagnetic High Frequency Vibration Testing Machine with Standard UL1642
Our advantages:
1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese
sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
technical parameters of horizontal expander:
technical parameters of vertical expander:
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil(Kg) | Dimension of Moving coil(mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Our service:
1.High quality guarantee with our vibration shaker.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
Customers' Visit ASLi Factory:
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past
28 years, we devoted to simulation environmental testing equipment
and Mechannical vibration and shock testing machine. UN38.3
Standard Electromagnetic High Frequency Vibration Testing Machine
is our star products , and we had obtained the CE certification for
this machine .
Exhibition:
Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you have any inquiry about the high freqency vibration shock tester , pls contact with us freely . thank you .
|
