| Categories | Handheld Inkjet Printer |
|---|---|
| Brand Name: | Yinma |
| Model Number: | YM-170C |
| Certification: | ISO9001 |
| Place of Origin: | Shanghai |
| MOQ: | 1 set |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 sets per month |
| Delivery Time: | 5-8 word days |
| Packaging Details: | Carton/Fumigation Wooden/Wooden |
| product name: | handheld inkjet barcode printer |
| Character height: | 1-18mm |
| Spray print lines: | Editing any lines in the range of height(15 lines max) |
| Spray print fonts: | Chinese ,English(Designed by need) |
| Spray print figure: | Fixed bar code, logo, graphic |
| Automatic spray print: | Date,time,Serial number,etc. |
| Price: | negotiation |
| Company Info. |
| Shanghai Yinma Marking Co., Ltd. |
| View Contact Details |
| Product List |

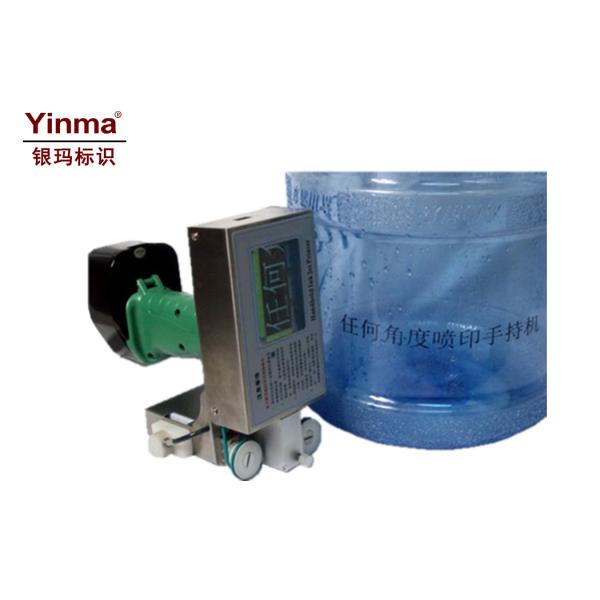

Hand-held inkjet printer for Batch No , EXP printing on metal , plastic , wood
Product Features
1. There is blockage prevention design of nozzle to ensure that the nozzle is not easy to jam or stop when in trouble-free operation for a long time;
2. Equipped with two sets of long-lasting lithium-ion batteries,replaceable battery in a second;
3. Can be input any proportion of graphic, no fixed graphic input constraints;
4. There is USB interface, computer transmission design trademark and input to the machine;
5. Without synchronous wheel replacement within the operating system adjustment, can change the synchronous wheel size ,then achieved easily adjust the width of information;
6. Long life digital LCD display (LCD) design, interface designed kindly, very easy to input the information
7. Through U disk copies A spurt the code machine information to spurt the code machine B to share with each other;
8. Modular design, fine workmanship, stable performance.
Technical parameters
| Spray precision | 300DPI |
| Spray type | High resolution print font |
| Spray font | Chinese ,English(Designed by need) |
| Spray figure | Fixed bar code, logo, graphic transmission is not affected by width ratio and the length of any restrictions |
| Spray line | Editing any lines in the range of height(15lines max) |
| Character height | 1-18mm |
| Automatic spray print | Date,time,batch number,Serial number,etc. |
| Stored Info | Unlimited |
| Stored Info length | Up to 200 characters |
| Serial number | 1-8 variable sequence number, |
| Spray velocity | Up to 35m/s,the velocity does not change by the increase of lines. |
| Ink color | Black,red ,white. The UV (stealth) |
| Ink used | Quick dry or oily environmental ink, without external gas source and diluent |
| External interface | USB |
| Weight | Lighter weight, without cartridge battery or cartridge the weight is only 724 g, no cartridge but contain battery the weight is 1030 g, 1100 g containing |
| Parameters of the power | Lithium of DC 16V can hold for eight hours on a single battery charge, 20 hours of standby time |
| System power consumption | Lower than 15W |
| Used environment | Temperature :0℃-37℃ Humidity 10%- 80% |
| Status display | Spray printing, synchronizer, photoelectric working normally when the light display |
| Arc spray printing | Within 10 cm in diameter |
| Change the barcode | Can download database through the U disk, spray barcode change, only for the E3 type |
| Wireless transmission | Transfer the information of code read to the machine within the range of a few meters |
| Piug battery | The battery compartment pluggable standard two battery pack can charge used alternately, to achieve non-stop |
|
