| Categories | Panel Mount Printers |
|---|---|
| Brand Name: | MASUNG |
| Model Number: | MS-FPT301K |
| Certification: | CE;ROHS |
| Place of Origin: | CHIAN |
| MOQ: | 1 |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 2500 set per month |
| Packaging Details: | carton and foam materials |
| Model: | MS-FPT301K |
| Printing method: | Thermal dot line |
| Printer head: | thermistor |
| Working voltage（Vp）: | DC 24V |
| Power consumption: | 1.75A（average） |
| Peak current: | 4.64A |
| Paper thickness: | 60～120um |
| Working voltage: | 24±10% V |

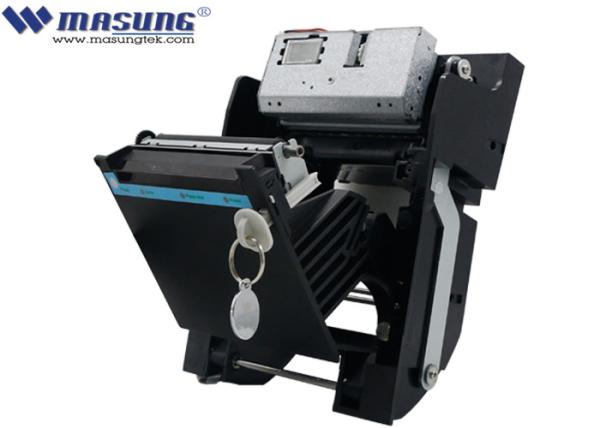

Support Android system multiple interfaces low price panel thermal printer
3 inch thermal printer with auto cutter & roll bucket
roll bucket opening & lock by key
Features:
Brand name printer mechanism
Super big roll bucket diameter Max 80 mm
Compact front panel mounting
Ultra high printing speed max 200 mm/s
Unique heat dissipation system
Multiple panel LED indication
Available customization case color
Specification:
| Model | MS-FPT301K | |
| Printing method | Thermal dot line printing | |
| Paper width | 80 mm | |
| Print speed | 170 mm/s( max) | |
| Dot density | 8 dots/mm | |
Total dots per line | 576dots | |
| Printing width | 72mm | |
| Paper feed method | Easy loading | |
| Cutter | Cut method | Partial cut |
| Paper thickness | 60～120um | |
| Activation pulse resistance | 500,000 | |
| Detection | Thermal head temperature detection | Thermal resistance |
| Out of paper detection | Photo interrupter | |
Operation voltage | Working voltage | 24±10% V |
| Power consumption | Mean 1.75A(25% of maximum printing dots) | |
environment | Operation temperature | -10~50 ℃(no condensation) |
| Operation humidity | 20%~85%RH(40℃/85%RH) | |
| Storage temperature | -20~60℃(no condensation) | |
| Storage humidity | 10%~90%RH(50℃/90%RH) | |
| Mass | 780g | |
| Interface | Serial/TTL/USB | |
| Current | 3A (max) | |
| Abrasion resistance | 150 km | |
| Paper roll diameter(max) | 80 mm | |
| Dimension (without panel) | D139.99mm*W84.31mm*H186.42mm | |
Application:
Queue management system, visitor attendance terminal, ticket vendor, POS, medical instrument, body scales and more
|
