12pcs CREE IP68 36W LED Underwater Lights With Two Years Warranty

Categories LED Underwater Lights
Brand Name: A.L
Model Number: AL-5A
Certification: CE,RoHS
Place of Origin: Guangdong,China
MOQ: 5pcs
Price: Negotiable
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 2,000pcs per day
Delivery Time: Sample and small order 2-4workdays,bulk order 8-12 workdays
Packaging Details: 4pcs/CTN (42x22x26CM),Weight 9.5Kg
Power: 36W
Beam Angle: 15°/30°/45°/60°
IP Grade: IP68
Cable Length: 3m or longer
Warranty: Two Years
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

12pcs CREE IP68 36W LED Underwater Lights With Two Years Warranty


12pcs CREE High Power LED Underwater Lights With SUS 316 Stainless Steel Bracket


Products Description


This is an underwater lights with very good quality of molding shapped SUS316 stainless steel,tope brand of CREE high power LED.Its colors are very colorful,unicolor,RGB,RGB 3in1 and RGB 3in1 with DMX512.

The molding shapped SUS 316 stainless steel tripod bracket,making the installation more easy and convenient.


Quick Details


  • Osram / Cree / Epistar high power LED,6x2W,6x3W,6x4W
  • DC12/24V
  • Molded shaped SUS 316 stainless steel housing/front cover
  • RGB/RGB 3in1/RGB 3in1 DMX512 /RGBW 4in1 color optional
  • IP68

Technical Datas


Model No.AL-5A
Input VoltageDC12/24V
Power12W/36W/48W
DimensionΦ250mm x H79mm
Sleeve DimensionΦ232mm x H126mm
ColorR/G/B/Y/RGB/RGB 3in1/Amber/W/CW/WW
Color Temperature2700K~6500K
LED ChipCREE 1W/3W high power LED
LED Qty18pcs/36pcs
Beam Angle25°
DimmableYES
Weight3.7Kg
Housing316 Stainless Steel
Front Cover316 Stainless Steel
SleevePVC
IP GradeIP68
Carton Package Dimension42x22x26CM
Carton Package Weight9.5Kg
Carton Package Qty4pcs
CertificationCE,RoHS
Warranty2/3years

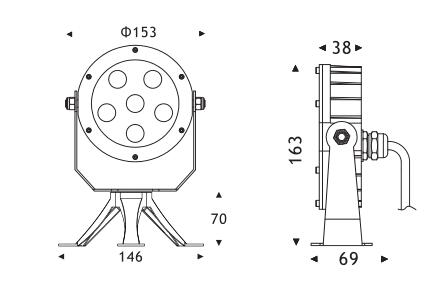

Dimension



Material & Manufacturing Technique


1)Molding shaped stainless steel sus316# housing.
2)Stainless steel sus316# front cover.
3)Step tempered glass,T=10mm
4)All-in -one optional lens,efficiency ≥ 85%
5)Exert force area of Φ10=210Kgs,Φ30=550Kgs,Φ60=800Kgs
6)IP68 PG-11 copper with nickel-coated.
7)High power LED,CREE/OSRAM brand.
8)Excellent heat conductivity aluminum PCB,coefficient of heat conductivity≥2.0w/mk

9)Constant current output

Single color LED=2-circuit output

RGB 3in1 LED=6-circuit output

10)Temperature of water between -20℃-40℃ less than 1m depth

11)H07RN-F 2x1.0m² L=3m(for single color)

H07RN-F 4x1.0m² L=3m(for RGB)

12)Dow Corning glue

Model Number Infos


Model No.ColorLED QtyVoltagePower
AL-5A0602Red/Green/Blue/Yellow/White/WW/CW12pcs12V/24VDC12 x 2W
AL-5A0605RGB 3in112pcs12V/24VDC12 x 2W
AL-5A0605MRGB 3in1 DMX51212pcs12V/24VDC12 x 3W

Competitive Advantage


  • All materials are stricted choosing,and used the most popular brand in the world.
  • Molding shaped stainless steel sus316#,good heat dissipation and corrosion resistant make sure the lamps has wide application and long lifetime.
  • 8mm Tempered glass, able to bear huge pressure.
  • CE, ROHS, IP68 approved.
  • Honeycomb lens,light is soft and uniform,RGB 3in1 colour mixture is beautiful.
  • DMX 512 optional,easy to make your water lighting project magnificent.

Accessoris


Molding shapped SUS316 stainless steel tripod bracket,easy to install,can adjust the lighting angle.


Warm Tip & Warning


1) This underwater light has to be lightened underwater to keep the light heat dissipation.

Pls don't light it more than 15 minutes out of water!

2) The LED underwater light is 12V / 24V low voltage,pls don't connect it to 220V / 240V high voltage,this

will burn the LED underwater light.

3) The best height for this LED underwater light lighting is within 1M

4) The power cable of this LED underwater light can be customized.

5) If you need the lamp work with DMX512 signal,pls contact our customer service agent.
