| Categories | Inductive Proximity Sensor |
|---|---|
| Brand Name: | KJTDQ |
| Model Number: | KJT-Y24/S-ZPK-X2 |
| Certification: | CE,RoHS |
| Place of Origin: | Jiangsu,China |
| MOQ: | 5pcs |
| Price: | $12.3-15.6/pc |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 120000 pcs/ mouths |
| Delivery Time: | 3-5 work days |
| Packaging Details: | Carton package |

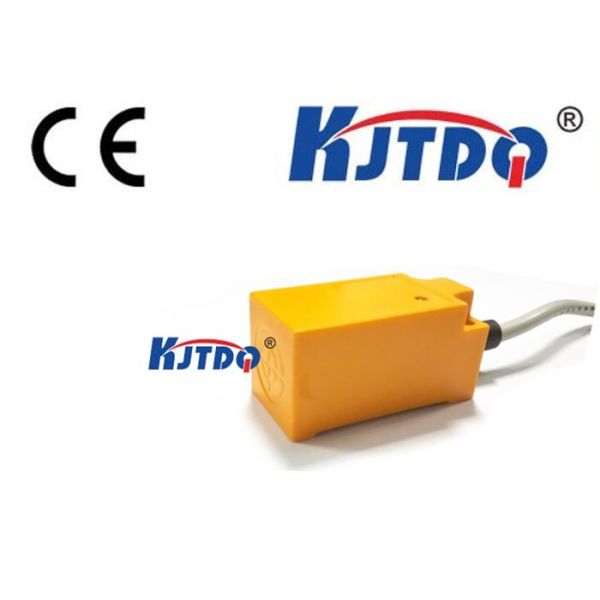

| Name: | square type inductive sensor |
| SN: | 0-15mm |
| Operating voltage: | 10-36Vdc |
| Max. load current: | 200mA |
| Operating temperature: | -25~70℃ |
| Material: | ABS |
| Usage: | Position Sensor |
| Theory: | Inductance Sensor |
| Company Info. |
| View Contact Details |
| Product List |
NO NC NO+NC 20mm Detecting ABS Unshielded Horn Type Inductive Proximity Switch Sensor
Name: Proximity inductive sensor
Output: Swicthing output
Disatnce: 0-15mm (Flush)
Mounting: Flush type
Power supply: 10-36Vdc.
Connection: Cable 2 m, 3 wires.
| Detection distance | 15 mm+/-10% | |||
| Set distance | 0~12 mm | |||
| Standard detection object | Iron50*50*1 | |||
| Response frequency | DC:0.5Khz AC:25Hz | |||
| Delay distance: | 10% below of the detection distance | |||
| Detecting object | Magnetic object (the detection distance decreases when it is non-magnetic metal) | |||
| Supply voltage | DCtype:DC12-24V(6-36V)Impulse(p-p)10%below Actype:AC110-220V(36-250V)50/60Hz | |||
| Consumption current | N.P type:13mA below D type:0.8mA below A type:1.7mA below | |||
| Control output | N.P type:300 mA below D type:200mA below A type:400mA below | |||
| Loop protection | N.P.D type:reversal connection protection, surge Absorption, load short-circuit protection A type: surge absorption | |||
| Ambient temperaturehumidity | During operation,storage:individually-30~+65( No freeze,no drew),During operation,storage Individually35~95%RH | |||
| Insulation resistance | 50 MΩ about(DC500 megameter) between charging and housing | |||
| Withstand voltage | AC1000V50/60Hz 1 min between charging and housing | |||
| Temperature influence | Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance | |||
| Voltage influence | Inside+/-15%rated supply voltagerange,at rated supply voltage value | |||
| Protection sturcture | IP67 | |||
| material | (Housing: ABS), Detection surface: ABS) | |||
Proximity inductive sensors are mainly used in food production,
packaging, agriculture, animal husbandry, plastics industry,
woodworking, chemical industry, semiconductors, pharmaceuticals,
etc.
|
