| Categories | Stud And Track Roll Forming Machine |
|---|---|
| Brand Name: | CHBEST |
| Model Number: | XY50x24 |
| Certification: | CE/BV/SGS |
| Place of Origin: | China Hebei |
| MOQ: | 1 set |
| Price: | 9500 |
| Supply Ability: | 20 sets/month |
| Delivery Time: | 30-40 days |
| Packaging Details: | plastic film for naked machine |

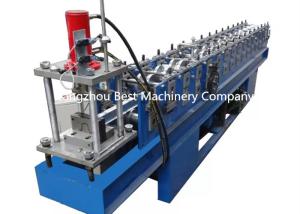

| Product name: | Drywall Partition C U Profile Omega Angle V type stud and track Light steel Keel forming machine |
| Control system: | PLC |
| Cutting type: | mould cutting |
| Warranty: | 2 years |
| Lifetime: | 10years |
| Roller material: | Cr12 mov |
| Shaft material: | 45#steel |
| Company Info. |
| Cangzhou Best Machinery Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
We supply the Complete roll forming Production line for producing Grid system, Suspended ceiling grid Ceiling T Grid, suspended ceiling grid, Exposed Ceiling Grid, T-bars, T-grid, Ceiling T grid ceiling, T Runner in the various models and sizes, Flexibility in the choice of the sizes, of the pitches and of profiles section, Possibility to produce also complex profiles, with special shapes and systems with or without clip; Average or high productivity lines; Dedicated or combined lines for the production of both Main Runners and Cross-T; Innovative solutions for any level of skill.
Working flow
Decoiler------feeding------roll forming-------cut to
length-----output table
Profile Drawing

Machine Components
| Name | Quantity(set) |
| De-coiler | 1 |
| Feeding guiding Device | 1 |
| Roll Forming Part | 1 |
| Hydraulic cutting Device | 1 |
| Computer control box | 1 |
| Hydraulic System | 1 |
| Run-out table | 1 |
Parameter
| Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control. |
| Control System | PLC Panasonic Inverter |
| Main Frame | 350mm H-Beam |
| Main Power | 5.5 kw |
| Pump Power | 3kw |
| Power Supply | 3-Phase,380V,50Hz |
| Forming Speed | 12-14m/min |
| Hydraulic Pressure | 18-20MPa |
| Forming Size | 80mm |
| Feeding Thickness | 1.5-3.2mm |
| Roller Station | 12 Stands |
| Roller Diameter | 60mm |
| Backboard Thickness | 16mm |
| Chain Size | 66mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 9500×1400×1350mm |
| Total Weight | 6T |
| Working conditions | |
| 1.Machine size | 10m x 1.2m (L XW) |
| 2.Working size | 20m x 2.5m (LXW) |
| 3.Power supply | 8.5kw |
| 4.Frequency | 50-60HZ |
| 5.Wires/cables | 4-6mm²(length according to workshop) |
| 6. Labor cost | 2 workers |
| 7. Tools | Spanners and screwdriver |
| 8.Lift device | 3-5t forklift or crane |



Re-sale Service :
1. Send you invitation letter, if you want to visit our factory and
check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable
Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder
and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.
RFQ
Step 1: Tell us your requirements
Step 2: Quoataion will be sent based on your requirement. Solution
will be recommended to you as the alternative
Step 3: Negotiate and confrim each details for goods, trading terms
and so on, get agreement and sign contract.
Step 4: Advanced payment and production
Step 5: Factory Examine Goods/ rectify and reform to meet the
requirements of contract.
Step 6: Balance payment and shipping
Step 7: Handing Shipping files to help clients get goods from
transporter in time.
Step 8: Clients get goods and go into warranty time.
|   |
