| Categories | Hollow Shaft Absolute Encoder |
|---|---|
| Brand Name: | HENGXIANG |
| Model Number: | KJ50 absolute encoders |
| Certification: | CE,ISO9001 |
| Place of Origin: | Shanghai,China |
| MOQ: | 1pcs encoder to start order |
| Price: | negotiable |
| Payment Terms: | D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc |
| Supply Ability: | 100K pieces per year |
| Delivery Time: | 3-5 working days for sample order, 7-15 working days for mass order |
| Packaging Details: | each 1 piece was packed into single carton box |
| Encoder type: | Gray code absolute encoders |
| Shaft Material: | Stainless steel |
| Hollow shaft type: | Through hole or blind hole |
| Hollow Shaft diameter: | 8mm;10mm;12mm;14mm;15mm |
| Protection grade: | IP50 ; IP65 |
| Interface: | NPN output |
| Top REV: | 3000RPM ;IP65≤2000r rpm |
| Net weight : | About 310g (with package) |

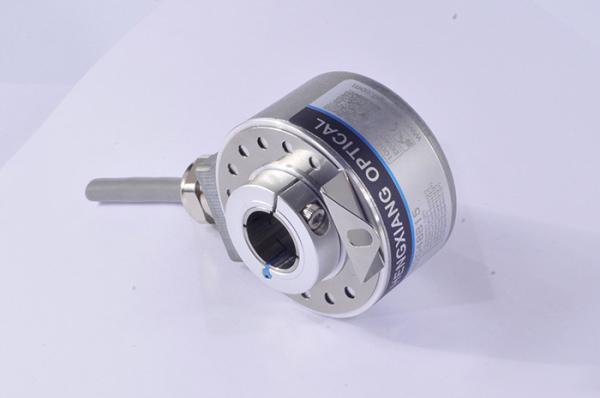

Absolute position encoder KJ50 gray code parallel output hollow shaft 10mm 12 bit
Matters needing attention
1. Must choose the power supply voltage: DC5V or DC8-30V
2. Must choose leaf spring plate model number if you select hollow shaft encoder
3. Please advise the motor speed (RPM) that you actually use
4. If you have any other requirements, please provide detail parameters
Parameter table for KJ50 encoder
| Items | Basic parameters |
| Brand | HENGXIANG |
| Bit(steps) | 5 bit;6 bit;7 bit;8bit;9bit;10 bit;11 bit;12bit |
| Supply voltage | DC5V ； DC8-30V |
| Outlet type | Radial cable |
| Radial socket | |
| Radial cable with plug | |
| Count direction | counterclockwise |
| outside control direction | |
| clockwise | |
| Interface | NPN low level effective |
| NPN high level effective | |
| Protection grade | IP50 ; IP65 |
| Consumption current | 100mA MAX |
| Top response frequency | 100KHZ |
| Allowable ripple | ≤3%rms |
| Load Voltage | ≤DC30V |
| Output code | gray code |
| Precision | 360/(resolution x 4) |
| Insulation strength | AC500V 60s |
| Insulation resistance | 10MΩ |
| GND | not connect to encoder |
| starting torque | less than 5x 10-3N.m |
| Intertia moment | less than 3x 10-6kg.m2 |
| Shaft load | Radial 50N; Axial 30N |
| Top REV | 3000RPM ;IP65≤2000 RPM |
| Bearing life | 1.5x109 revs at rated load(100000hrs at 2500RPM) |
Applications
FAQ
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can I pay a visit to your factory?
A: Yes, you we welcome to visit our factory at any time if convenient.
Q: How long is your delivery time?
A: Usually 3 working days for sample, 7-15 days for mass production,
The production date is according to order quantity.
KJ50 Absolute encoder model number to select
KJ50-C6 N64 CB14
KJ50-TE7 N180B12
KJ50-TE8 NH360 CB10
KJ50-C9 N512 CQ14
KJ50-T10 NH1024Q12
KJ50-T11 N2048 CQ10
KJ50-C12 NH4096Q8
KJ50-C5 N32 CB15
KJ50-T6 NH64WB14
KJ50-T7 N128B12
|
