ASRS Solution Shuttle Racking System Stacker Crane Combined With Shuttle

Stacker crane combined with shuttle system

The system consists of stacker crane, shuttle, and shuttle racking system

*It is applicable to warehouse with low storage and replenishment efficiency.

*Ultimate storage and replenishment efficiency depends on the stacker carne. Each stacker can be equipped with several shuttles to enhance the storage and replenishment efficiency.

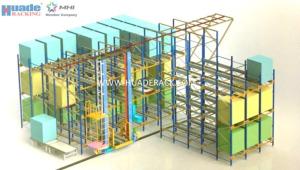

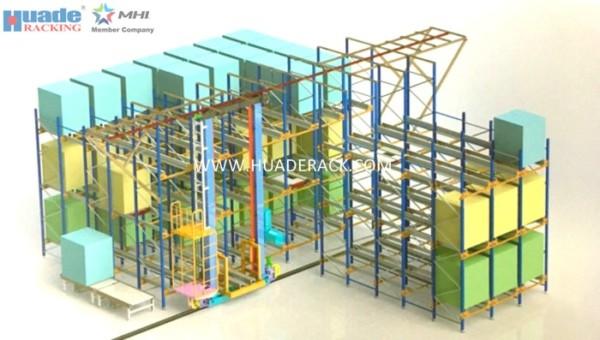

Simulation of stacker crane combined with shuttle system:

A sample of layout plan of stacker crane combined with shuttle system:

Shuttle racking system

Nanjing HUADE Storage Equipment Manufacturing Co., Ltd was established in March, 1993. We are pioneered in rack manufacturing industry, and are one of the earliest professional manufacturer specializing in logistics storage systems, including warehouse planning, design, manufacturing and installing.

At present, we have a strong R & D team and professional manufacturing plants. In December 2009, a new factory with 66,000 square meters was built in Nanjing Jiangning Science Park. It indicates that HUADE has entered into a new stage of development. There are 5 professional manufacturing plants, more than 200 sets of equipments in the new factory. Annual production capacity is around 50,000 tons.

With partners from Japan and Europe, HUADE is dedicated in technical innovations, and actively improve and upgrade the products and technology to meet the international standards. HUADE has accomplished remarkable achievements on product optimization and automation, which favored by majority of customers in and abroad.

In 2012, HUADE designed and manufactured the first fully automated high-density storage carrier & shuttle system in China. As a pioneer of high-density storage automation, we concentrate on providing the optimal proposal on automated storage systems, realizing limited space expansion by unlimited storage automation.

We aim to offer a full range of services to the customers by our sales network all over the world.
