| Categories | Pneumatic Pipe Beveler |
|---|---|
| Brand Name: | Wellnit |
| Model Number: | ISP-630-2 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets for a mounth |
| Delivery Time: | within 7 days after received 100% payment |
| Packaging Details: | plywooden |
| Supply power: | 220-240V 50-60Hz |
| Operation way: | Penumatic |
| Thickness: | Less than 75 (Standard) |
| Speed Rotation: | 10r/min |
| Working WAY: | No Spark,Cold Working |
| Installation way: | Inside Mounted |
| Working Range: | 300-630mm(Inside Diameter) |
| Price: | Negotiable |

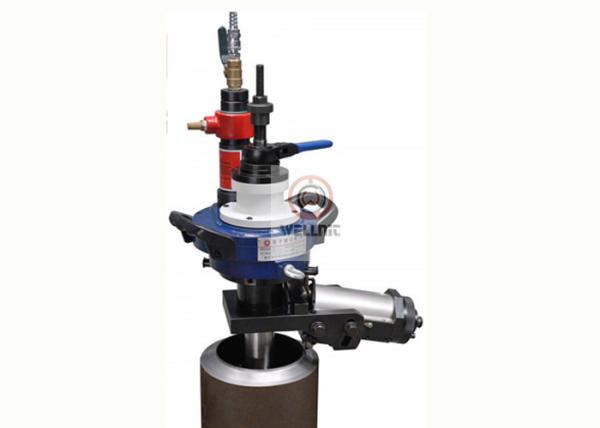

Portable Handheld Beveling Machine Penumatic Driven Cold Working 10 R/min
Main performance of the product
This series is ID Mounted Welding Preparation Pipe Chamfering Tool adopts air motor,main applied at the site of explosive and fireproof,power supply required:0.6-0.8MPa compressed air. With the advantage of:Fast Installation,self centered and working safely. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.
| ISP-630-2 Beveling Machine | |
| Voltage | 220-240V |
| Frequency | 50-60Hz |
| Power | 1600W |
| Wall Thickness | ≦75 |
| Working Range | 300-630mm |
| Rotation Speed | 10r/min |
| Net Weight | 132kg |



|   |
