| Categories | Screw Connection Terminal Block |
|---|---|
| Brand Name: | WONKEDQ，WKDQ |
| Model Number: | JSAK 6EN |
| Certification: | CE/RoHS/CQC/ISO 9001 |
| Place of Origin: | China |
| MOQ: | 100pcs |
| Payment Terms: | T/T, Paypal, Western Union, etc |
| Delivery Time: | 2-7 days |
| Packaging Details: | Box |
| Product color: | Yellow, other color can achieve |
| Rated Cross section: | 6 mm² |
| Mounting way: | NS 35 |
| Rated voltage: | 800V |
| Rated current: | 41A |
| Way of connection: | Screw connection |
| Company Info. |
| Wonke Electric CO.,Ltd. |
| View Contact Details |
| Product List |

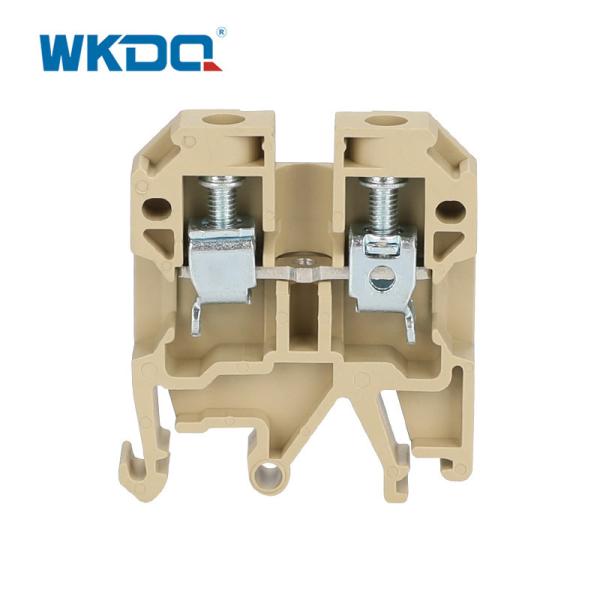

1. DESCRIPTION
SAK screw connection system with clamping yoke technology ensures the ultimate in contact safety. You can use screw-in cross connections for creating potential distribution. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality.
Design in standard and compact body.
Simple and convenience operation.
Stable and low contact resistances.
All types of accessories with high quality.
Ease of handling and a reliable electrical connection.
Made from safe and high quality material.
Reduce the installation costs and speed the wiring.
Strong contact force and excellent connection.
Versatile and vibration proof.
Made from Polyamide 66 with tin plated brass conductor.
Corrosion-proof metal parts make the connecting in stability.
The screw connection terminal blocks are widely used in different applications.
Accessories: End covers, End Stoppers,Markings,Bridges, etc.
2.TECHNICAL PARAMETERS
| Model Number | JSAK 6EN |
| Color | Yellow, other color can be customized |
| Length/Height/Wide (mm) | 42/46.5/8 |
| Connection method | Screw connection |
| Material | Nylon PA66 |
| Rated Voltage/Current | 800V/41A |
| Rated Cross section | 6 mm² |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | WonkeDQ, LOGO can be customized |
| Packing Detail | 13.04g/pc, 50PCS/BOX,1500PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
