| Categories | Medium Voltage Power Cables |
|---|---|
| Brand Name: | Yifang |
| Model Number: | Concentric Cable |
| Certification: | ISO CCC CE KEMA UL |
| Place of Origin: | China |
| MOQ: | 500 Meters |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 KMS / Month |
| Delivery Time: | 30 working days |
| Packaging Details: | Standard exported drums (Wooden or Iron&wooden ) |
| Conductor: | Compacted Round Al |
| Standard: | CSA C68.5 CSA C68.3 |
| Jacket Color: | Black, Black with 3 red stripe |
| Cross-section: | 1/0awg~1500 MCM |
| Application: | Use for distribution utilities |
| Rated Voltage: | 5KV, 8KV, 15, 25, 28 kv, 35, 46KV |
| Production Equipment: | CCV Line |
| Core: | Single |
| Characteristic: | Water-blocking |
| Jacket: | Sunlight resistant LDPE LLDPE |
| Company Info. |
| Zhengzhou Yifang Cable Co., Ltd |
| View Contact Details |
| Product List |

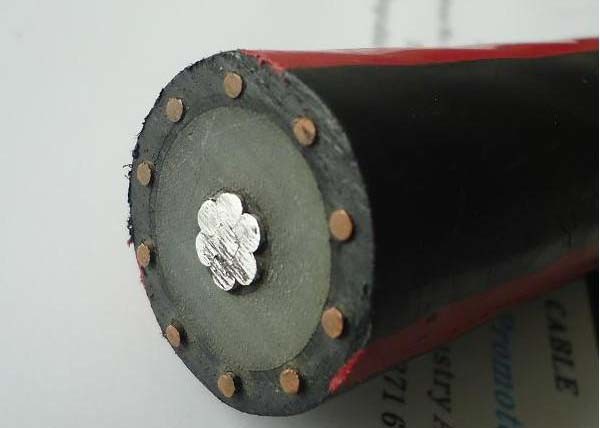

AL / CU 133% 15KV TRXLPE 500 MCM MV Concentric Cables with 1/3 neutral shielded
Application:
The xlpe single core concentric neutral cables rated 5 to 45KV which
are used for the transmission and electrical energy, distribution
of electrical energy.
Standards: ICEA S-94-649, CSA C68.3, CSA C68.5
Rated Voltage: 5KV, 8KV, 15, 25, 28 kv, 35, 46KV
Constructure:
Conductor: Copper / Aluminum
Conductor screen: Semi-conducting compound
Insulation: XLPE / TR-XLPE (100% 133% insulation can be customized
)
Insulation Screen: Semi-conducting compound
Metallic Screen: Round annealed copper wire
Water-blocking layer (optional): Longitudinal type
Wrapping tape(optional): non-woven clothing tape
Sheath: PVC/LDPE/LLDPE/HDPE
Color: Black, Black with 3 red striples
| Cross-section Area | Conductor | Conductor Shield | XLPE Insulation | Insulation shield | Full Neutral | LDPEOutersheath | Approx Od | |||||||||
| AWG | MM2 | Min. Stranding No. | Dia. | Thick ness | Dia. | Thick ness | Dia. | Thick ness | Dia. | Copper wire Size & No.s | Dia. | 100% | ||||
| 100% Insl | 100% Insl | 100% Insl | AWG | mm | No.s | 100% Insl | FULL | |||||||||
| 5KV CU | 4 | 21.15 | 7 | 5.41 | 0.6 | 6.61 | 2.3 | 11.21 | 0.8 | 12.81 | 16 | 1.29 | 16 | 15.39 | 2.0 | 19.4 |
| 5KV CU | 3 | 26.67 | 7 | 6.05 | 0.6 | 7.25 | 2.3 | 11.85 | 0.8 | 13.45 | 16 | 1.29 | 20 | 16.03 | 2.0 | 20 |
| 5KV CU | 2 | 33.62 | 7 | 6.81 | 0.6 | 8.01 | 2.3 | 12.61 | 0.8 | 14.21 | 16 | 1.29 | 26 | 16.79 | 2.0 | 20.8 |
| 5KV CU | 1 | 42.41 | 7 | 7.59 | 0.6 | 8.79 | 2.3 | 13.39 | 1.1 | 15.59 | 14 | 1.63 | 20 | 18.85 | 2.0 | 22.9 |
| 5KV CU | 1/0 | 53.49 | 18 | 8.53 | 0.6 | 9.73 | 2.3 | 14.33 | 1.1 | 16.53 | 14 | 1.63 | 26 | 19.79 | 2.0 | 23.8 |
| 5KV CU | 2/0 | 67.43 | 18 | 9.55 | 0.6 | 10.75 | 2.3 | 15.35 | 1.1 | 17.55 | 14 | 1.63 | 32 | 20.81 | 2.0 | 24.8 |
| 5KV CU | 3/0 | 85.01 | 18 | 10.7 | 0.6 | 11.9 | 2.3 | 16.5 | 1.1 | 18.7 | 12 | 2.05 | 26 | 22.8 | 2.0 | 26.8 |
| 5KV CU | 4/0 | 107.2 | 18 | 12.1 | 0.6 | 13.3 | 2.3 | 17.9 | 1.1 | 20.1 | 12 | 2.05 | 32 | 24.2 | 2.0 | 28.2 |
| 5KV CU | 250 | 126.7 | 35 | 13.2 | 0.6 | 14.4 | 2.3 | 19 | 1.1 | 21.2 | 0 | 0 | 0 | 0 | 2.0 | 0 |
| 5KV CU | 300 | 152 | 35 | 14.5 | 0.6 | 15.7 | 2.3 | 20.3 | 1.1 | 22.5 | 0 | 0 | 0 | 0 | 2.0 | 0 |
| 5KV CU | 350 | 177.3 | 35 | 15.6 | 0.6 | 16.8 | 2.3 | 21.4 | 1.1 | 23.6 | 0 | 0 | 0 | 0 | 2.0 | 0 |
| 5KV CU | 400 | 202.7 | 35 | 16.7 | 0.6 | 17.9 | 2.3 | 22.5 | 1.1 | 24.7 | 0 | 0 | 0 | 0 | 2.0 | 0 |
| 5KV CU | 450 | 228 | 35 | 17.8 | 0.6 | 19 | 2.3 | 23.6 | 1.1 | 25.8 | 0 | 0 | 0 | 0 | 2.0 | 0 |
| 5KV CU | 500 | 253.4 | 35 | 18.7 | 0.6 | 19.9 | 2.3 | 24.5 | 1.1 | 26.7 | 0 | 0 | 0 | 0 | 2.0 | 0 |
| 5KV CU | 550 | 278.7 | 58 | 19.7 | 0.6 | 20.9 | 2.3 | 25.5 | 1.1 | 27.7 | 0 | 0 | 0 | 0 | 2.0 | 0 |
| 5KV CU | 600 | 304 | 58 | 20.7 | 0.6 | 21.9 | 2.3 | 26.5 | 1.4 | 29.3 | 0 | 0 | 0 | 0 | 2.0 | 0 |
| 5KV CU | 650 | 329.4 | 58 | 21.5 | 0.6 | 22.7 | 2.3 | 27.3 | 1.4 | 30.1 | 0 | 0 | 0 | 0 | 2.0 | 0 |
| 5KV CU | 700 | 354.7 | 58 | 22.3 | 0.6 | 23.5 | 2.3 | 28.1 | 1.4 | 30.9 | 0 | 0 | 0 | 0 | 2.0 | 0 |
| 5KV CU | 750 | 380 | 58 | 23.1 | 0.6 | 24.3 | 2.3 | 28.9 | 1.4 | 31.7 | 0 | 0 | 0 | 0 | 2.0 | 0 |
| 5KV CU | 800 | 405.4 | 58 | 23.8 | 0.6 | 25 | 2.3 | 29.6 | 1.4 | 32.4 | 0 | 0 | 0 | 0 | 2.1 | 0 |
| 5KV CU | 900 | 456 | 58 | 25.4 | 0.6 | 26.6 | 2.3 | 31.2 | 1.4 | 34 | 0 | 0 | 0 | 0 | ||
|
