| Categories | CNC Lapping Machine |
|---|---|
| Certification: | ISO |
| Place of Origin: | Taiwan |
| MOQ: | 1 set |
| Price: | Negotiated |
| Payment Terms: | T/T |
| Supply Ability: | Negotiated |
| Delivery Time: | Depending |
| Packaging Details: | Export Standard packing |

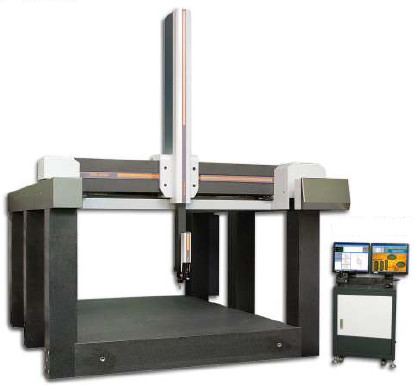

| Measuring Travel: | 1500x2500x1000mm(X,Y,Z) |
| Resolution: | RENISHAW Linear Scales 0.001mm/option 0.0001mm |
| Software: | IK5000+CNC+Win pro |
| Non Contact Vision: | Color CCD+Zoom |
| Zoom Magnification: | 10x-100x(20x-200x) |
| Surface Light: | White LED |
| Specification | 1525 |
| Measuring Travel | 1500x2500x1000mm(X,Y,Z) |
| Resolution | RENISHAW Linear Scales 0.001mm/ option 0.0001mm |
| Software | IK5000-CNC+Win-pro |
| Hardware | PC+24" LCD color monitor |
| Non contactvision | Color CCD+ZOOM |
| Zoom maganification | 10x-100x(20x-200x) |
| Surface Light | White LED |
| Auto focus | Z-axis |
| Trigger Probe | RENISHAW PH10T |
| Z axis balance | Cylinder |
| Operation | CNC programable |
| Drive | Servo motors+Joystick |
| Transmission | Air bearing in 3 axes(85psi,0.6Mpa more is requested) |
| Accuracy | U1=3+L/200um;U3=5+L/150um temperature 20°C+-1 humidity 55-65% |
| Granite plates | DIN876 0 Grade(Area 2250x3100mm) |
| Demo parts height | 900mm |
| Demo parts weight | 1200kgs |
| machine dimensions | 295x365x345cm(Including stand frame) |
| Appearance(WxDxH) | 400x365x345cm(including Deluxe table) |
| machine weight | 8350kgs |
| Option/software | Z axis can be increased up to 1500mm AAT software Auto zoom Auto light |
 | Model | 450 | 650 | 1000 |
| Accuracy | <=2 um | <=3um | <=6um | |
| Range | 0-450mm | 0-650mm | 0-1000mm | |
| Temperature | 20+-1ºC | 20+-1ºC | 20+-1°C |
Vertical Tester
 | Model | 300 | 600 |
| Range | 0-300mm | 0-600mm | |
| Accuracy | |||
| Straightness | <=3um | <=5um | |
| Operation | Manual | Manual | |
| Weight | 8kg | 10kg | |
| Temperature | 20-23ºC | 20-23ºC | |
UCC Introduction
UCC universal CMM controller is a sophisticated integrated motion control system,which is available with three levels of operating capability,Touch-trigger probing,digitizing and full scanning capability including renishaw's patented RENSCAN DCTM
Laser Zoom
a rapid focusing device is combined with the laser and vision zoom. it increases the speed as well as the accuracy in focusing,besides the 2D vision measurement and 3D laser scan.
Probe system and Styli
| Modules | Trigger Force X Y | Color | Z | Styli Max |
| STD:Standard force | 8gf | black | 75gf | 10-40mm |
| MED:medium force | 10gf | grey | 190gf | 30-60mm |
| 6-way, 6way module | 14gf | blue | 160gf | 10-30mm |
| EXT:Extended force | 10gf | red | 320gf | 30-60mm |
| LOW:low force | 5.5gf | green | 65gf | 10-30mm |
| EM1:extension module | 8gf | marble | 75gf | 10-50mm |
| EM2:extension module | 8gf | marble | 75gf | 10-50mm |
|
