Machine Overview :
As a famous factory specially in producing the pole clamping and welding machine. We have lots of experience in producing this machine.The pole was widely used in the city and road. It is suitable for one piece type polygonal and circle taper light pole. it is automatic welding line, the dolly with speed adjustable motor can pull (or push) the light pole from small end to big end , The hydraulic cylinder through mechanical chain, Worm wheel push the clamping wheel to close the pole and do welding at the same time.
Polygonal Conical Staff shut and welding machine mainly use for combining the pole longitudinal steel joint and welding the seam.

The machine includes the following items :

• Long working table with rack for pull doly.
• Dolly for pulling pole
• Hydraulic clamping and welding unit (including 3 sets clamping wheels for
• polygonal and circle pole)
• Submerged Arc Welding and Gas-shielded welding(CO2) Welding system,
• including welding wire feeding system.
• The flux recovering system
• back support unit
• hydraulic system

Technical Parameters

Optional:

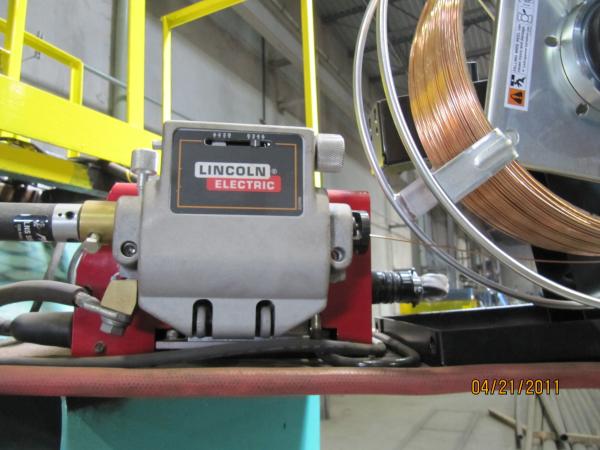

Lincoln welding machine (USA BRAND)
Note:, If chose the Lincoln welding machine,normally it is suitable for Submerged Arc Welding
process

Fast motorized return back for dolly
Note:for the standard machine, the dolly return back can be motorized with working speed, it
is very slow for return back process. So, normally, the operator will open the dolly clutch and
push the dolly by manual.
In order to reduce the manpower, we have option: Fast motorized return back for dolly. The
operator only push button, the dolly will be back to the welding head.
See attached detail photos.

Both Side additional hydraulic cylinder
It is suitable for small diameter big thickness light pole, or steel plate with high tensile
strength light pole.
With this additional option , the diameter from 60~450mm, thickness 2.8~6mm, all pole can be
suitable. And easy for operation.

Applications:

Electricity pole and lamp pole was widely used in the countryside and City ,such as electricity transport pipe , shine lamp pole ; blinker , Offshore,Petro Chemical ; Plate Heat Exchanger ; Charged air cooler ; Pressure Vessel ;Pipe system&Steel works etc.


Competitive Advantage:

1. All the bolt using 12.9 grade Bolt , not using 8.4 grade. Making the machine more stronger.
2. 20 % overweight design , could making the rotator focus more.
3. Double row wheels ,not only making the wheels stable, but also artifacts to increase friction.
4. All the parts using well-known brands in China or other countries . Quality is more reliable .
5. Using double row bearings.
6. The base of rotator welded by plates, with high strength, no deformation after long time using.


Why choose my factory?

360°guarantee makes ordering risk free.
20 years welding machine manufacture experiences.
one-stop service of welding.
OEM service.
Quickly feedback for your problems.

Company introduction

     We are located in Wuxi city, Jiangsu province, specializes in manufacturing various types of high speed, high precision roll forming machines, with more than 15 years’ experience. It has gained highly praise by customers from all over the world, due to top quality and competitive price of the products. Company principle: top quality, low price.

      Wuxi Luole Machinery Co., Ltd is a high tech enterprise . We a professional manufacturer of cold forming equipment (especially high difficulty cold formed steel), wins the trust of customers by its honesty, pragmatic operation philosophy, advanced technology, innovative design thinking, excellent quality, superior after sales service, competitive price, etc.

Main products

    We mainly produce all kinds of roof/ wall tile roll forming machine, C purlin, Z purlin, C&Z interchangeable purlin roll forming machine, solar photovoltaic forming machine, shelf column roll forming machine, guardrail roll forming machine, cable tray roll forming machine, metal deck roll forming machine, down pipe roll forming machine, rolling shutter door roll forming machine, cut to length machine, eps/pu sandwich panel production line, slitting line, automatic stacker, etc, mainly in construction use.

After sale service

1). Engineer will give free training lessons to labors in buyer’s factory.

2). The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 for engineer per day.

3). During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.

4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
