Phase: | 2 |
Type: | easy servo motor |
Step Angle: | 1.8 degree |
Holding Torque: | 1.1N.m |
Current / Phase: | 4.2A |
Product name: | closed loop stepper motor |
Application: | cnc router |
Frame size: | 57*57mm |
Company Info. |
CHANGZHOU JKONGMOTOR CO.,LTD |
View Contact Details |
Product List |

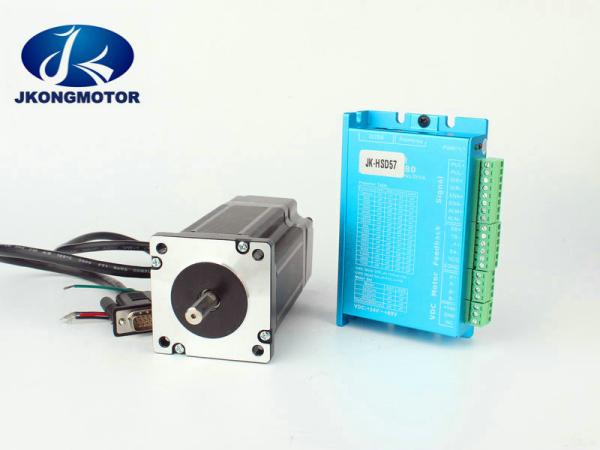

Closed Loop Stepper Motor System Nema 23 Stepper Motor Kit 1.1N.M For CNC Machine
Item | Specifications |
Step Angle | 1.8° |
Temperature Rise | 80℃max |
Ambient Temperature | -20℃~+50℃ |
Insulation Resistance | 100 MΩ Min. ,500VDC |
Dielectric Strength | 500VAC for 1minute |
haft Radial Play | 0.02Max. (450g-load) |
Shaft Axial Play | 0.08Max. (450g-load) |
Max. radial force | 75N (20mm from the flange) |
Max. axial force | 15N |
Electrical Specification of nema23 easy servo motor:
Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm | Kg | |
JK57HS56- 4204 BFED-0.35M | 1.8 | 56 | 4.2 | 0.4 | 1.2 | 1.1 | 4 | 350 | 280 | 0.98 |
Details of nema 23 closed loop stepper motor systerm:
Note: We can also manufacture products according to customer's requirements.
Matched Drivers:2 Phase closed loop stepper motor system match driver Model: JK-HSD57
Parameter | Min | Typical | Max | Unit | |
Input Voltage (JK-HSD57) | 20 | 36 48 | 50 | VDC | |
Input Voltage (JK-HSD57C) | 24 | 36 48 | 80 | VDC | |
Input Voltage (SC8680C) | 24VAC | 60AC | 80VAC 100VDC | VVDC | |
Output Current | 0.1 | - | 10(Peak) | A | |
Pulse Input Frequency | 0 | - | 200 | kHz | |
Logic Signal Current | 7 | 10 | 16 | mA | |
Isolation Resistance | 500 | - | - | MΩ |
Dimensions:
Unit=mm
![]() |
