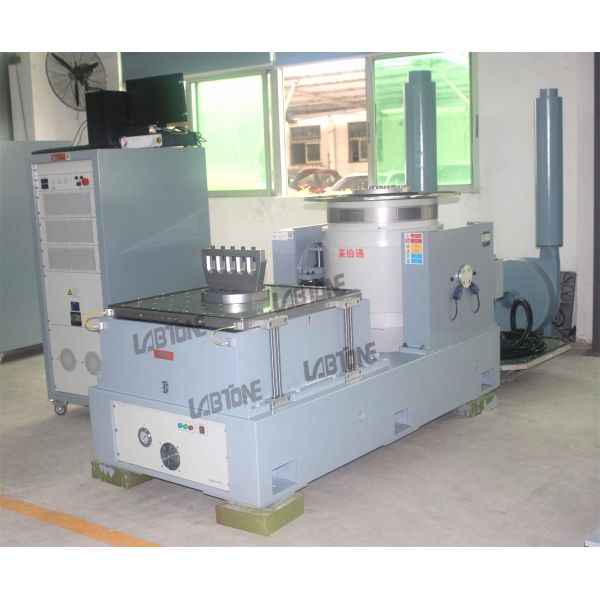

UN38.3 Battery Testing Machine , Electrodynamic Vibration Shaker System 7-200Hz 8g 1.6mm

UN38.3 Battery Test Machine, Vibration Shaker 7-200Hz 8g 1.6mm

UN_38.3 Lithium Battery Test Standard.pdf

Introduction:

Vibration Testing is performed to determine if a product can withstand the rigors of its intended use. Labtone is a professional manufacturer for high-performance vibration shaker including electrodynamic shakers and repetitive shock vibration tables.

We can customize vibration test system to meet your specific needs. Choose from a number of custom options for your electrodynamic vibration shaker.

Meet Standards:

MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.

Applicable Industries:

Automotive electronics device, Motormeter assembly, Automobile storage battery, Automotive electric equipments, Automotivemotor, Water-soluble dielectric battery, Safety valve, Auto air conditioning compressor etc.

Features:

• Double magnetic circuit structure to ensure high magnetic field intensity & reduce flux leakage; Special degaussing structure can reduce flux leakage to below 1 mt
• U-type spring ,rollers and linear bearing for strong resistance of deflecting load
• Air spring are used for vibration isolation; Vibration system work steadily even with heavy load; no need special foundation
• Protection devices are provided for over-thermal, over-load, over-current, over-voltage, and over-displacement of the vibration tester; Electrical network protection devices for over-voltage, under-voltage, lacking phase; Drive power , current-limiting , soft-start, over-temperature, short-current,module fault protecting
• Able to complete sine ,random , impact environmental tests
• This system requires voltage fluctuation, ≤±10%
• This system requires Grounding resistance, ≤4Ω
• High reliability, especially suitable for long-time operation

Detailed Pictures:
