| Categories | Low Bed Semi Trailer |
|---|---|
| Brand Name: | FUDENG Brand Low bed trailer |
| Model Number: | Low bed trailer |
| Certification: | CE , ISO,ADR/DOT |
| Place of Origin: | Shandong China(Mainland) |
| MOQ: | One Unit Low bed trailers |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Units Per Month |
| Delivery Time: | 20days after deposit |
| Packaging Details: | Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ; |
| Axles: | Fuwa/BPW/Chinese brand |
| Suspension: | Mechanical suspension and Air suspension |
| Load capacity: | 40-80Tons |
| Color: | Customized |
| Size: | 12.5mx3mx1.5m Or Customized |
| King Pin: | 50 # Or 90 # |
| Landing Gear: | JOST 28 Tons |
| Material: | Q345B carbon steel |
| Price: | negotiation |

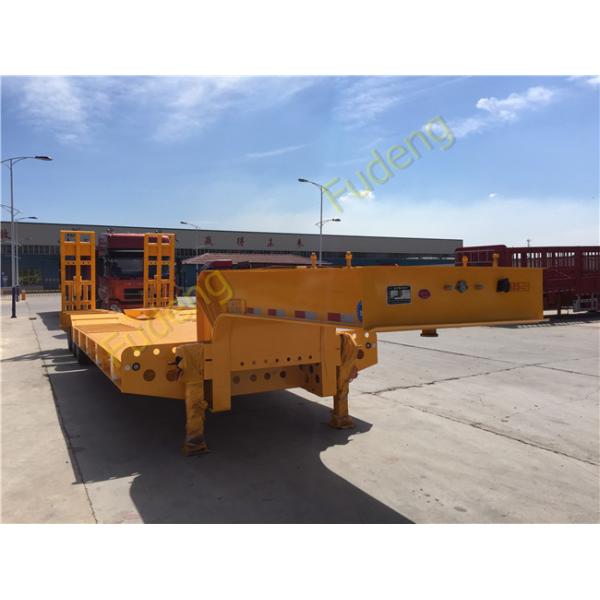

Tri-Axles 60-80Tons Low bed trailers for heavy duty machine transportation
FUDENG Low bed trailers:
1.We have well experienced in reseaching and developing different trailers:container trailer, low bed trailer, side wall semi
trailer, stake semi trailer, tank trailer and heavy duty trailer etc.
2.High tensile strength steel Q345B for I-beam
3.Axle:German or American style from 12 tons to 20 tons
4.Suspension:Mechanical suspension, air suspension or bogie suspension.
5.Tyre:10.00R20, 10R22.5, 11.00R20, 11R22.5, 12.00R20 or 12R22.5 (Other size is optional)
6.King pin:Optional for 2" or 3.5" Kingpin
Features:
1) Reinforced main beam and side beam to ensure high loading.
2) Adopting best brand FUWABPW axle, Triangle tyres
3) Optional working platform to fit your machines.
4) Running in a off road and bad road.
LOW BED TRAILER Specification:
| Tare Weight | About 8.5-13T |
| Dimension | 12000mm-18000mm*2500mm-3500mm*3050mm Please indicate the working platform height and length. |
| Loading Capacity (T) | 60T-80T |
| Axle | 13 T/16T, FUWA /BPW Brand |
| Rim | 6.5-20/7.5-20/8.00-20/8.5-20 |
| Tire | 8.25R20/10.00R20/11.00R20/12.00R20 |
| Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
| Main beam | Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel . |
| Side beam | 16mm -25mm channel steel ( Material is Q235steel ). |
| Ladder | Manual or Hydraulic type |
| Gooseneck | For choose |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks |
| ABS | Optional |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
| Valve | WABCO valve |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
Tri-Axles low bed semi trailers.
60 Tons Low bed semi trailers.
Welcome to visit our factory!
|
