| Categories | LPG Tank Trailer |
|---|---|
| Brand Name: | FUDENG Brand |
| Model Number: | SDFDZH040733 |
| Certification: | BV, ISO,CCC |
| Place of Origin: | Shandong China(Mainland) |
| MOQ: | 1 set |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 sets per Month |
| Delivery Time: | 20 - 30 work days after deposit |
| Packaging Details: | By bulk or As your requirements |
| Tire: | 11.00r20 12r22.5 or other |
| Logo: | Customized |
| Axle: | FUWA |
| Landing Gear: | 28ton |
| King pin: | Fabricated type, Jost 2" or 3.5" |
| Landing gear: | JOST brand |
| Brake System: | Dual Line Braking System |
| Price: | negotiation |

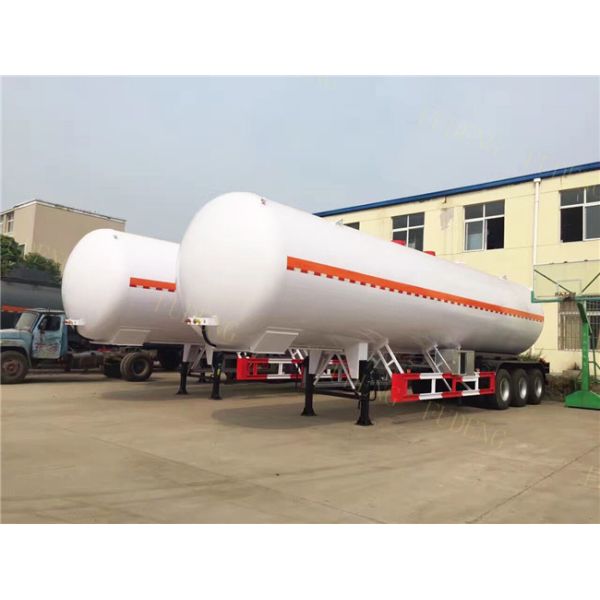

50m3 3 axles auto lpg tank semi trailer / 50cbm tri-axle lpg tanker truck trailer
) LPG tank Designing pressure:0.7 ~ 2.16Mpa Designing temperature:500C
2 ) The various types LPG tank is researched and manufactured by stress analysis design and has obvious advantage of large capacity.light weight and high efficiency.
3 ) We inspect the quality of lpg tank product strictly,ensure that A and B type of welding seam pass the examination of level two radiographic test,C and D type of welding seam pass the examination of level one radiographic test.
4 ) There are domestic or imported safety accessories with high quality ,its matching is complet for lpg tank.
5 ) The anticorrosion coating of LPG tank adopt the following process, sandblast, spray painting ,purging and so on.
Specification
| LPG TANK SEMI TRAILER | ||
| Dimensions(length*width*height) | 13000*2500*3995(mm) | |
| Estimated Tare Weight | 15514KG | |
| Payload | 24486KG | |
| Total Weight | 40000KG | |
| Effective Volume | 57 CBM | |
| Products | LPG, Butane , Propane | |
| Fluid property | flammable | |
| Design temperature | -40°C to 50°C | |
| Design pressure | 1.61MPa | |
| Corrosion allowance | 1.0mm | |
| Major materials of bearing pressure | Tanker body : Q345R , 12.5mm,End plate : Q345R , front:10mm,Rear:12.5mm ,Main Beam : T700 | |
| Filling weight per volume | 420Kg/m3 | |
| Maximum filling weight | 24486Kg | |
| Compartments | One | |
| Baffle inside the tank | 14-off Aluminum bolted plate , thickness is 5mm | |
| Shape | Cylindrical ; Ellipse head | |
| Heat treatment | Overall heat treatment in a furnace , 500°C to 560°C | |
| Flaw detection | 100% Flaw detection | |
| Hydrostatic test | 2.1MPa | |
| Magnaflux | Aim at welding place flaw detection can not cover | |
| Manhole | 1 ; On top | |
| Safty Valve | 1 | |
| Axles | 3 | 13 TON |
| Suspension system | 1 | Leaf spring |
| Tyre | 7 | ISO Certificated 12 R22.5 vacuum with 9.00 |
| Kingpin | 1 | 90# and 50# Bolt-atble |
| Landing legs | 1 | 28Ton |
| 7-Pin Socket | 1 | 24V 7-pin socket |
| LED Lamp | 1 | All kinds of lamp |
| Small Tool box/Wheel carrier | 1/1 | |
| Fire extinguisher | 2With red box | |
Packaging & Shipping
1. By Bulk Ship or Roro Ship
2. By Container
3. By SKD Type.
