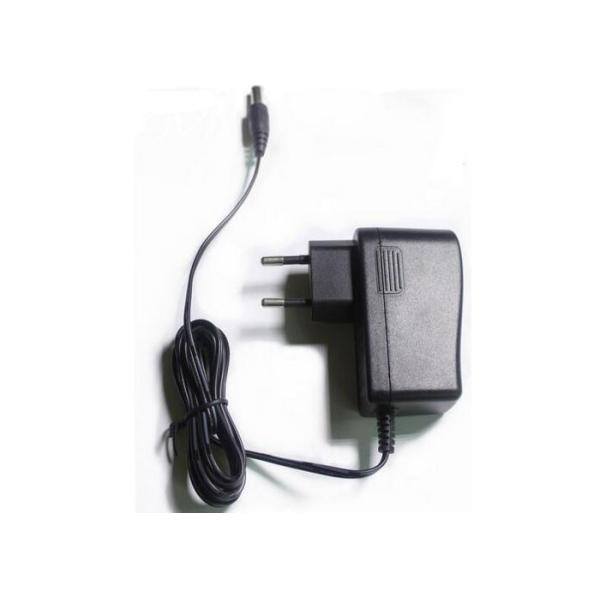

12V 1A 1.5A Wall Mount Power Adapter for CCTVs LED Strips CE Rohs FCC UL TUV CB
Specification:
| Output | DC Voltage | 12V | ||||
| Rated current | 1A | |||||
| Current range | 0-1A | |||||
| DC power | 12W | |||||
| Ripple and noise | 100mVp-p | |||||
| Intet stability | ±0.5% | |||||
| Load stability | ±1% | |||||
| Intput | AC voltage range | AC100~240V 47~63Hz | ||||
| Current | 0.6A/115V 0.35A/230V | |||||
| Efficiency | 77% | |||||
| AC Inrush current | Cold-start current 18A/115V 30A/230V | |||||
| Leakage current | < 0.5mA/240VAC | |||||
| Protection | Overload | 105%~150% Type:pulsing hiccup shutdown Resete:auto recovery | ||||
| Over voltage | 13.8~16.2V | |||||
| 200ms,100ms,30ms | ||||||
| Safety | Setup,rise,hold up time | 200ms,100ms,30ms | ||||
| Vibration | 10~500Hz,2G 10min,/1 cycle | |||||
| Withstand voltage | Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc | |||||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |||||
| Environment | Temperature coefficient | ±0.03%/°C (0~50°C ) | ||||
| Working temperature and humidity | -10°C ~+60°C,20%~90%RH | |||||
| Store temperature and humidity | -20°C ~+85°C,10%~95%RH | |||||
| Other | Overall dimension | 70×25×39 | ||||
| Weight | 0.08Kg | |||||
| Certificate | CE EMC Authenticate | EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008 | ||||
| EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009 | ||||||
Application:
Audio equipment, Video equipment, Household appliances, Medical equipment, Communications equipment, etc..
Description:
1. Certificate: CE,Rohs,FCC,UL,TUV,CB
2. Quick delievery: 15 days
3. 2 years warranty
4. Quality control: we test one by one before sending out.
5. Long standby time, long lifespan
6. Larger order can get big discount
7. OEM, ODM are highly welcome




|
