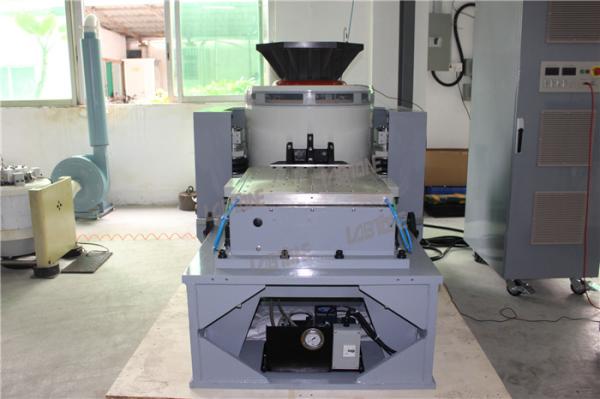

Name: 32kN Vibration Test Machine Performed 3axis XYZ Direction Random Vibration Test
Brand: LABTONE
Price: 1 USD

Home > Other Fabrication Services >

32kN Vibration Test Machine Performed 3axis XYZ Direction Random Vibration Test

Categories	Vibration Testing Machine
Brand Name:	LABTONE
Model Number:	EV232
Certification:	CE / ISO
Place of Origin:	Dongguang, China
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T, L/C
Supply Ability:	15 Sets / Month
Delivery Time:	45 Working Days
Packaging Details:	Plywood Case with Vacuum Packing
Sine Force:	3200 kg(32kN)
Shock:	6400kg(64kN)
Maximum Displacement:	51 mm
Power Amplifier:	Amp35k
Amature Diamter:	Dia 400
Armature Mass:	30kg
Name:	32kN Vibration Test Machine Performed 3axis XYZ Direction Random Vibration Test

Contact Now

Add to Cart

Company Info.

Labtone Test Equipment Co., Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

32kN Vibration Test Machine Performed 3axis XYZ Direction Random Vibration Test

Product Application
Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.

Type Selection Formula of Vibrator and Structural Diagram of vibration shaker

In selecting a suitable vibration test system, It is important to properly define the required exciting force , for performing a vibration test.

Take the following test conditions into account and calculate the required exciting force to judge raged capabilities of the vibration test system.

Would you please let us know the following test conditions ?

Frequency range ?

Max. acceleration ?

Mass of test article and fixture ?

Max. size of test sample and fixture ?

Electrodynamic Shaker Specifications:

Model	EV103	EV203	EV106	EV206	EV210	EV220
Vibration Generator	VG300/25	VG300/40	VG600/25	VG300/50	VG1000/50	VG2000/50
Frequency(Hz)	2-4000	2-2500	2-3000	2-3000	2-3000	2-2500
Max Exiting Force(kg.f)	300	300	600	600	1000	2000
Max. Displacement (mmp-p)	25	38	25	50	50	50
Max. Acceleration(g)	100	100	100	100	100	100
Max. Velocity(cm/s)	200	120	180	200	200	200
Payload(kg)	110	120	200	200	300	400
Armature Mass(kg)	3	3	6	6	10	20
Armature Diameter(mm)	φ150	φ150	φ200	φ200	φ240	φ320
Cooling Method	Forced Air Cooling
Vibration Generator Weight(kg)	460	460	720	920	1100	1600
Vibration Generator Dimension LWH(MM)	750560670	750555670	800600710	800600710	845685840	12008701100
Power Amplifier	Amp3k	Amp3k	Amp6k	Amp6k	Amp12k	Amp22k
Cooling Method	Forced Air Cooling
Power Amplifier Weight(kg)	250	250	320	320	350	500
Power Amplifier Dimension LWH(MM)	8005501250	8005501250	8005501250	8005501250	8005501520	8005501520
Utility Requirements	3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW)	8	9	18	20	25	35

Main Features

1) Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.

2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.

3) High efficiency D class power switching, 3-sigma peak current, low power consumption and minimum harmonic distortion.

4) Quick self-diagnosis with safety interlock, high safety reliability

5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance

6) Horizontal and vertical expansion platforms for different applications

7) Simple controller operation

Customer Services

Presales:

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales:

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when Third Party’s verification is required).

After-Sales:

Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

Technical support: special paid services are provided according to customer’s needs.
