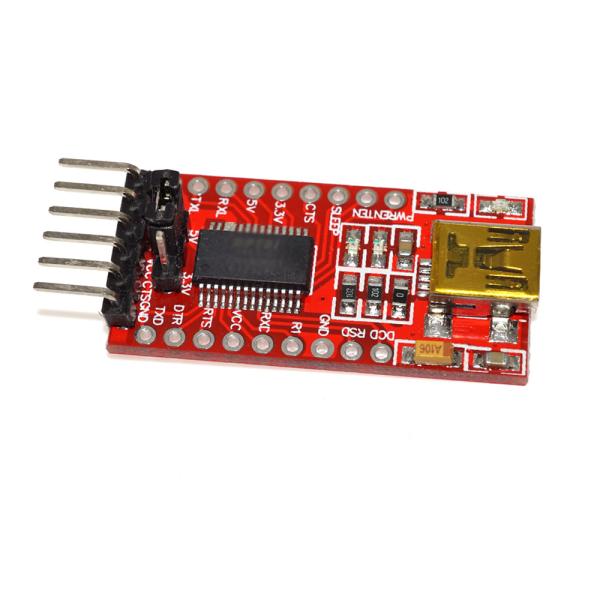

3.3V 5.5V Mini USB FTDI FT232RL USB to TTL Serial Adapter Module
Description:
Chip: FT232RL
Draw out all signal port of FT232RL chip.
RXD/TXD transceiver communication indicator.
USB power supply, can choose 5V or 3.3V ,set by jumper.
With over current protection, using 500MA self-restore fuse.
Pin definition: DTR,RXD,TX,VCC,CTS,GND
Pitch:2.54mm
Module size:36mm(length)*18mm(width)
Interface: Mini USB
Product Details:
| Product Category: | USB Interface IC |
| Manufacturer: | FTDI |
| Type: | Bridge, USB to UART |
| Standard: | USB 2.0 |
| Speed: | Full-Speed |
| Data Rate: | 12 Mb/s |
| Operating Supply Voltage: | 1.8 V to 5.25 V |
| Operating Supply Current: | 25 mA |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 85 C |
| Mounting Style: | SMD/SMT |
| Package / Case: | SSOP-28 |
| Packaging: | Reel |
| Brand: | FTDI |
| Interface Type: | UART |
| Product: | USB Bridge Controllers |
| Unit Weight: | 0.019401 oz |
