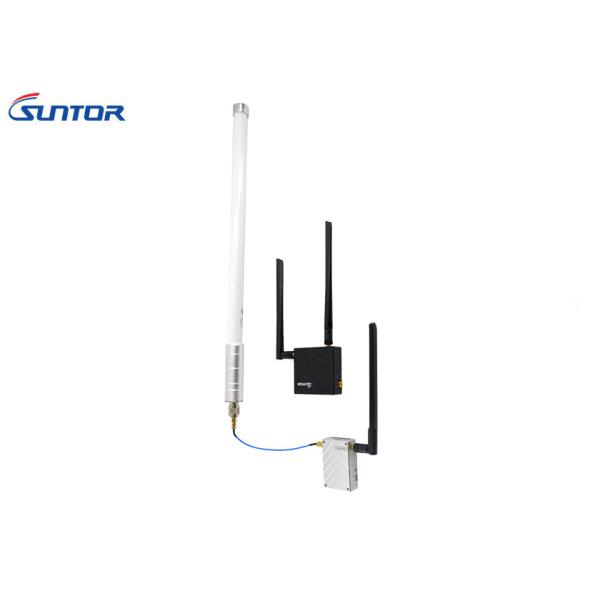

2.4GHz 30km Long Range UAV COFDM Transmitter Duplex Mavlink Data System

2.4GHz 30km Long Range UAV COFDM Transmitter Duplex Mavlink Data System

2.4GHz 30km Long Range UAV COFDM Transmitter Duplex Mavlink Data System
2.4GHz 30km Long Range UAV COFDM Transmitter Duplex Mavlink Data System
Categories DMR Two Way Radio
Model Number: ST30HPT
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
MOQ: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Modulation: TDD-COFDM
Frequency: 2.4GHz(2.402 - 2.478 GHz)
Air to Ground Distance: 30km
Latency: 15-30ms
Sensitivity: -100dbm/4Mhz, -95dbm/8Mhz
Duplex Data: SBUS/PPM/TTL/RS232/MAVLINK
Weight: RX 148g TX: 93g
video port: High Definition Multimedia Interface and ethernet
Contact Now
Company Info.
Shenzhen Suntor Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2.4GHz 30km Long Range UAV COFDM Transmitter Duplex Mavlink Data System

2.4GHz 30km long range UAV COFDM video transmitter duplex Mavlink data system


ST30HPT User Manual.pdf ST30HPT Specs.pdf


Product description:
As its small size and lightweight, the transceiver is widely used in UAV, flight test, two-way data telemetry transmission system.


Main Features:

  • Frequency: 2.4GHZ(2.400-2.482GHz)
  • Ultra-high Resolution Image: Independently developed CABAC (h.264+h.265) coding&decoding technology
  • Video: Video sources self-adaptive(Max 1080P), Support High Definition Multimedia Interface Input/output
  • Ultra-distance: 30km(ST30HPT)
  • Transmission Signal: Support SBUS(Futaba)/PPM/TTL/RS232/485
  • Support Video and Duplex Data (Compatible with different brand Fly control system and RC in the market)
  • TTL bidirectional serial port
  • Ultra-low Delay: ≤12-25ms
  • 100Mbps Ethernet for option
  • Output Video to PC and monitor display simultaneously.
  • Working Temperature: -40℃~+85℃

Applications:

  • VTOL uav
  • Heavy lift octocopter
  • Heavy fixed wing uav
  • Heavy lift VTOL uav with long endurance

Parameters

Frequency2.4GHz(2.400-2.482GHz)
Wireless Fault-tolerantLDPC FEC
RF Transmitted Power1.5Watts
Power ConsumptionTX: 12Watts/RX: 5Watts
Distance30km
Bandwidth2/4/6/8Mhz
Video Input/output InterfaceOn board High Definition Multimedia Interface mini TX/RX or FFC convert to High Definition Multimedia Interface-A TX/RX
Bitrate and channel adjustment modeDIP or SPI2MCU
Antenna1T1R/ Tx: 5db(Omni Antenna) Rx: 10db(Omni Antenna)
Video Color SpaceDefault 4:2:0 optional: 4:2:2/4:4:4
Video Compressed FormatAVC adds H.265 feature TS stream
Adjustment mode of bitrateSoftware adjustment
Communication Channel EncryptionWEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Modepoint to point
Start-up time25s
Latency15-30ms
Transmission Rate3-5Mbps
Receive Sensitivity-100dbm@4Mhz, -95dbm@8Mhz
Two-way functionSupport video and duplex data simultaneously
DataSupport SBUS/PPM/TTL/MAVLINK

Interface

(same interface on TX & RX)

1. 1080P 60 High Definition Multimedia Interface Mini RX x1
2. 100Mbps Ethernet to USB / RJ45 on Windows x2
3. S1 TTL bidirectional serial port x1
4. Power Input (DC7-18V) x1
Indicator LightHigh Definition Multimedia Interface input/output indicator light
Transmitting and receiving indicator light
Video board indicator light
Power light
High Definition Multimedia InterfaceHigh Definition Multimedia Interface mini/Flexible Flat Cable(FFC)
Appearance DesignCNC technology/double aluminum alloy shell with waterproof design
Power supplyDC 7- 18V (DC 12V advised)
Temperature Range

Operating temperature:-40°C ~+85°C

Storage temperature:-55°C ~ +100°C

DimensionTx: 73x48x20mm/ Rx: 72×73×24mm
WeightTx: 93g, Rx: 148g
