| Categories | UV Aging Test Chamber |
|---|---|
| Brand Name: | AI SI LI |
| Model Number: | XL-1000 |
| Certification: | CE , ISO , SGS , BV |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200 sets per year |
| Delivery Time: | 30workdays |
| Packaging Details: | standard export plywood case |
| Internal Dimension: | 1000*1000*1000mm |
| Tube Using Life: | 1500H |
| Tube Power: | 1KW/6KW |
| Illumination Intensity: | Full spectrum |
| Controller: | LCD Touch Screen |
| Cooling Method: | Air Cooled |
| Diameter of Sample Shelf: | 500 +/- 50mm |
| Explore Area: | 7500cm2 |
| Viewing Window: | 350*450mm |
| Communicate Interface: | R232 or R485 |

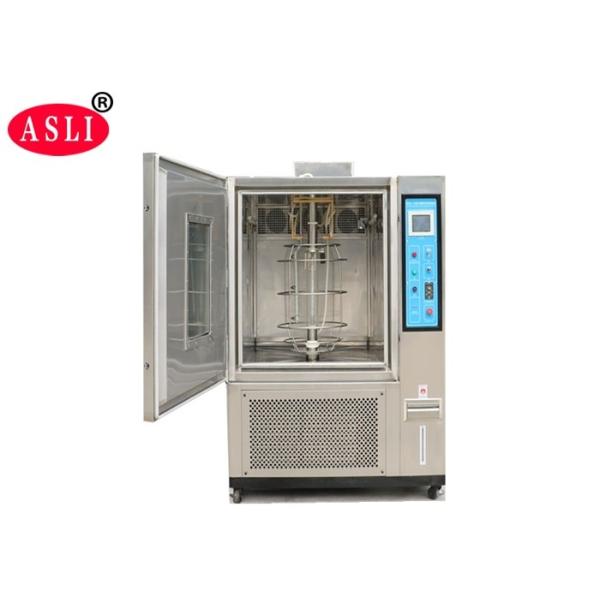

Full Spectrum Xenon Lamp Weathering Resistance Aging Testing
Chamber Price
xenon arc almp test chamber adopts xenon arc lamp which can realize
full wavelength of natural sunlight to the most extent,so that to
precipitation,high temperature,low temperature and moisture of
natural environment, so that it can perform extremely realistic and
accerated weathering test on material and coating layer.
| Model | XL - 1000 | |
| Internal Dimension WxHxD (mm) | 1000x1000x1000 | |
| External Dimension WxHxD (mm) | 1550x2150x1550 | |
| Tube Using Life (H) | 1500 | |
| Tube Power | 1KW/6KW | |
| Illumination Intensity | 340nm | Full spectrum |
| Lighting Filter Type | Inner filter | Quartz |
| Outer filter | Quartz | |
| Simulated Test Status | Test samples: Explore under outer space | |
| Cooling System | Water cooled or wind cooled | |
| Temperature Control Range of the Test Cabinet | Black panel temperature : BPT 40~120°C(±3°C) | |
| Black standard temperature :BST 38~120°C(±3°C) | ||
| Humidity Control Range of the Test Cabinet | Humidity when lighting: 20%R.H.~75%R.H. (± 5%R.H.) | |
| Humidity when dark: 60%R.H.~95%R.H. (± 5%R.H.) | ||
| Rotating Speed of the Samples Holder(RPM) | 1~5 adjustable | |
| Diameter of Sample Shelf(mm) | 500±50 | |
| Sunlight Exposure Cycle | 0.01~999 hours 59mins | |
| Raining Period/ Time | Raining Period:1~240mins,discontinuous-type, adjustable | |
| Raining Time:1~9999mins, adjustable, water spray pressure 70~130Kpa | ||
| Spray water flow(L/min) | 1~2.4 | |
| Explore Area(cm2) | 7500 | |
| Power | AC 380 V(±10%),50/60HZ ,3 phase 5 Lines | |
Full Spectrum Xenon Lamp Weathering Resistance Aging Testing
Chamber Features:
1. Advanced design technology and concept,
2. Excellent technology of producing and outstanding system of
quality management,
3. Xenon lamp tester can be the most realistic simulated solar
spectrum, including ultraviolet,
visible and infrared.
4. Be tested in the range of the full spectrum, necessary for most
textile sun and color fastness test.
5. To determine the color fastness and aging to sunlight, weather
resistance, etc.
Our advantages:
1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese
sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufaturer in China with
excellent experience and skills, also have best quality products
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
|
