| Categories | Video Matrix System |
|---|---|
| Brand Name: | pearmain |
| Model Number: | PE50MA32-8 |
| Certification: | CE, FCC, UL |
| Place of Origin: | China |
| MOQ: | 1unit |
| Price: | negotiation |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000units per week |
| Delivery Time: | 7 working days |
| Packaging Details: | special shipping carton, 430(W)×90(H)×313(L)mm, 6kgs |
| input: | 32ch TVI, CVI or AHD, or CVBS |
| output: | 8ch HDMI or 8ch BNC & 4ch HDMI |
| Communication: | Pleco D, P, TVI, CVI |
| hybrid: | input hybrid or output hybrid |
| alarm: | external, 32ch alarm sensor input |
| Company Info. |
| Pearmain Electronics Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

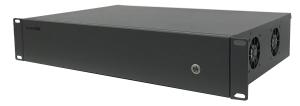

PE50MA HD Analog Video Matrix system , Pearmain full cross point modularized matrix switch, 32ch BNC input, 8ch HDMI otuput or 8ch BNC & 4ch HDMI output
Quick Detail:
● Microprocessor-Based, Full Cross-Point Video Matrix.
● support CVBS, HD TVI, CVI,AHD input, or CVBS, TVI or CVI hybrid input
● Factory Tested Prepackaged System Configuration And Quick-Guide Manual.
● Pelco D, P.
● Powerful Macro Programming
● CE, FCC compliant
Description:
PE50MA HD analog matrix bay can have up to 32ch HD analog video input & 8ch video output, can extend to 64ch input and 16ch output, it is last generation of pearmain modular matrix system.
Specifications:
| Communication Mode | serial (RS-485),TCP/IP RS422 |
| Display Mode | numeral duct |
| Baud Rate | 9600 bits/s |
| Connection Mode | STP |
| Video Isolation degree | -45dB |
| Channel Bandwidth | 10 MHz |
| Video S/N | 65 dB |
| Differential Phase | ≤1.1° |
| Differential Gain | ≤0.6% |
| Insertion Gain | ≤0.1db |
| Synchronous Nonlinear Distortion | 1% |
| Brightness Nonlinear Distortion | 1.50% |
| Inter-modulation Distortion | 0.50% |
| Amplitude Frequency Characteristic | 1.5db |
| Waveform Distortion in a Short Time | 3.50% |
| Cluster Frequency Delay Characteristics | 6ns |
| Brightness/Color Time Delay Offset | 2.5ns |
| Brightness/Color Time Delay Gain | 8% |
| Video Input Signal | 1Vp-p /75Ω |
| Video Output Signal | 1Vp-p /75Ω |
| Audio Input Signal | 1Vp-p |
| Audio Output Signal | 1Vp-p |
| The Maximum Inputs (can be controlled) | 64 |
| The Maximum Receiver/drivers (can be controlled) | 255 |
| The Maximum allocated keyboard | 16 |
| Memory Retention in Power-off | 10 years |
| Operable Keyboards number | main keyboard with 35 keys and, sub keyboard with 23 keys |
| temperature | -10℃～ +35℃ |
| Working Voltage | AC 220V ±10% 50/60 Hz for matrix, DC 9V ±10% for sub keyboard. |
| Matrix Weight | 5.8kg |
| Matrix Power | 30 W |
| Matrix Size | 430(W)×90(H)×313(L)mm |
| Installation Mode | desktop or 19” standard rack |
Applications:
For the surveillance system where there are all analog cameras, the application focus on real time surveillance.
The application including Transportation control center, casino, city surveillance, anti-terrorist, harbor,etc. large scale surveillance system.
|
