PPM / SBUS / TTL digital UAV video transmitter and receiver High Definition Multimedia Interface / SDI Video interface

PPM / SBUS / TTL digital UAV video transmitter and receiver High Definition Multimedia Interface / SDI Video interface

Data Sheet

Introduction

ST100HPT is a mini HD Video and Duplex data transmission COFDM system for UAV. It develops CABAC (H.264+H.265) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground (100-120km) and low delay(15-30ms) transmission. The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.

Features

Modulation: TDD-COFDM
Frequency: 2.4GHz(2.400 - 2.482 GHz)
Air to Ground Distance: 100-120km
Duplex Data: Support SBUS/PPM/TTL
System Latency: 15-30ms
Video Input: High Definition Multimedia Interface/SDI

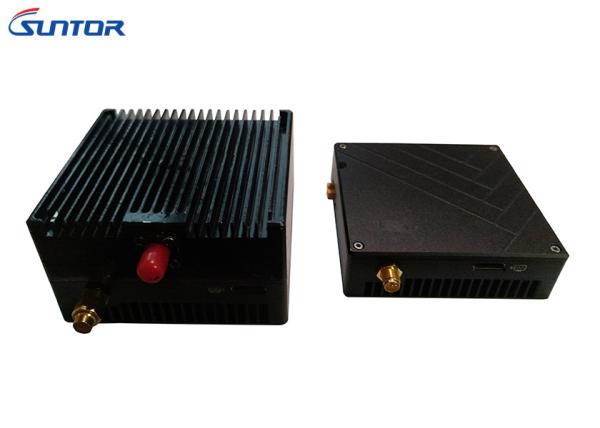

TX

Dimension: 76x73x44mm

Weight: 251g

Support High Definition Multimedia Interface/SDI Video input, Auto pilot system and UAV nacelle

Double Antenna for transmitting

RX

Dimension: 76x73x23mm

Weight: 146g

Support High Definition Multimedia Interface/Ethernet video output, connecting with GS, RC, PC and display

Double Antenna for Receiving

Parameters

Pictures
