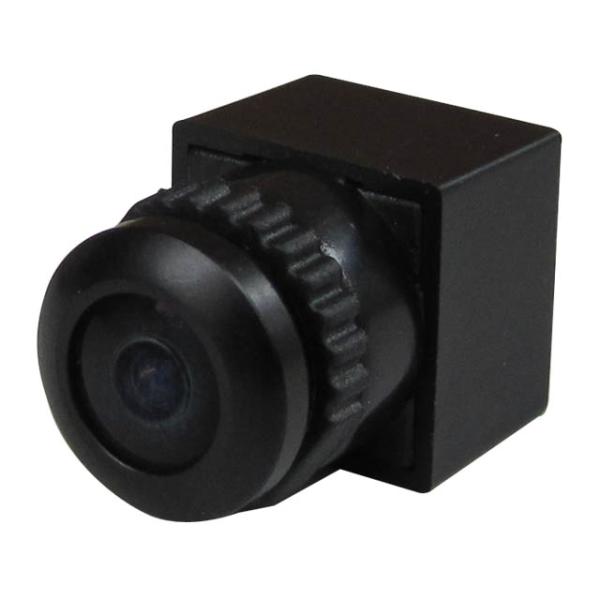

mini smart camera 170deg view anlge mini camera with audio wide voltage mini video camera

Features:
* 170degree wide view angle,3.6-24v wide voltage
* Small Size: easy to install into narrow room and slim tube, etc.;
* High resolution, high sensitivity, high SNR;
* Day & night dual mode auto switch;
* Low Illumination, Low Current and power consumption;
* CMOS sensor generation IV+DSP chip offer true color & HD video.
170deg view anlge 1/4 cmos 480TVL mini camera with audio wide voltage

PICK UP ELEMENT	Single chip 1/4CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC:720(H)×480(V)	PAL:720(H)×576(V)
SENSOR DIMENSION	3.584mm(H)×2.688mm(V)
HORIZONTAL RESOLUTION	Approximately 480TV Lines
SENSITIVITY	0.1Lux/F2.8
LENS & VIEW ANGLE	F2.8/ 170°
S/N RATIO	48dB
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm
AUDIO OUT	1.0V p-p/1Kohm
WEIGHT	8g
SIZE(LXWXH)	15.5X15.5X26mm
WORK CURRENT	DC12V: 45mA DC5V: 95mA
POWER REQUIREMENT	DC:3.6V-24V
OPERATING TEMPERATURE	- 10° C ~ +50°C ,less than 90% RH
Connection	PIN1=> Red DC5V /12V PIN2=>Black GND PIN3=>Yellow VIDEO OUT PIN4=>White AUDIO

Contents:
* mini camera X1;
* RCA BNC cable X1;
* AC adapter DC5V:X1
